W/Harness Inspection

Automatic Transaxle
P0732 Gear 2 Incorrect Ratio - Inspection/Repair:_:W/Harness Inspection

Signal Circuit Inspection

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".

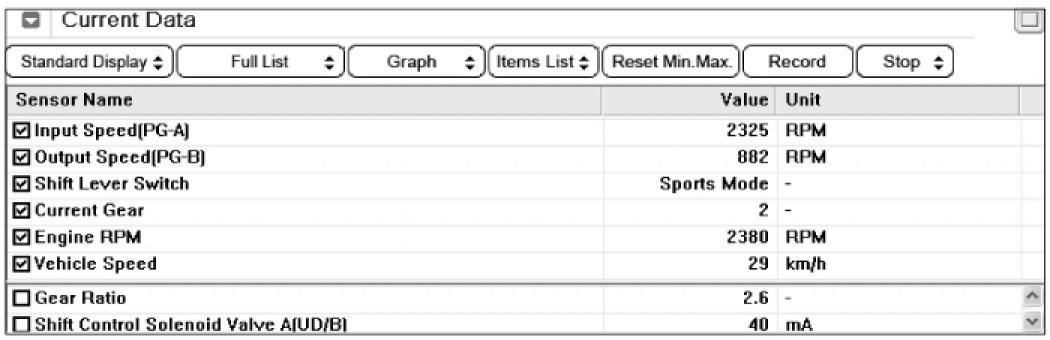

3. Selet "Currnet Data"mode and monitor "Engine speed, Input speed sensor(PG-A), Output speed sensor(PG-B) and Gear position" parameter used select option.
4. Engine speed up to about 2000rpm and check Input speed(PG-A)&Output speed(PG-B) are within specific at 2nd speed of gear.

Specification
+ Output speed < (Input speed/ 2nd position gear ratio-200rpm)
+ Output speed > (Input speed/ 2nd position gear ratio+200rpm)




5. Are measured Input speed(PG-A)&Output speed(PG-B) within specifiction?
