W/Harness Inspection

4WD Control
P0727 Engine Speed Input Circuit No Signal - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,or damage.
3. Has a problem been found?

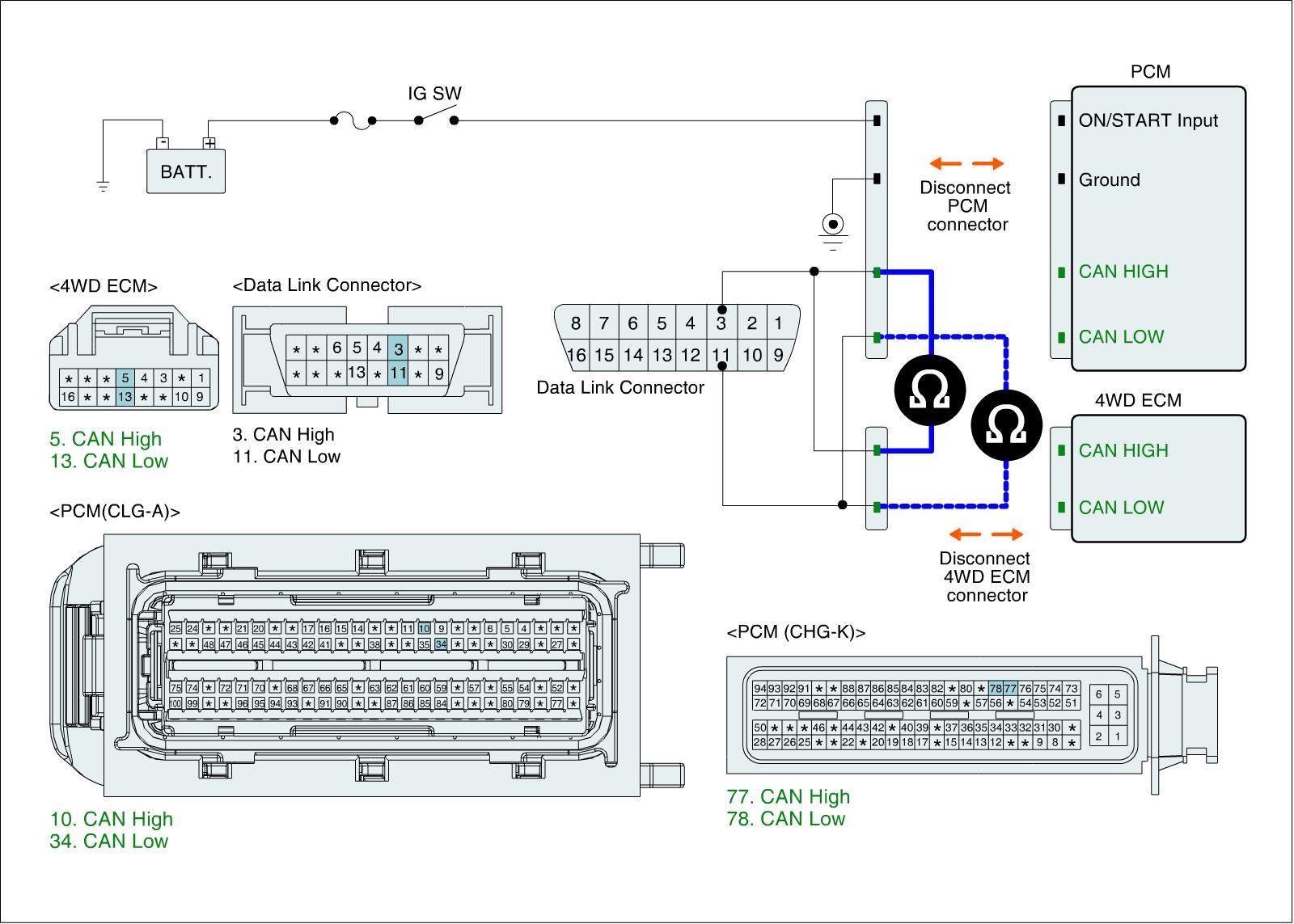

CAN communication circuit inspection (ECM <--> 4WD ECM)

CAN Line Inspection
1. IG key "OFF".
2. Disconnect 4WD ECM connector and ECM connector.
3. Measure the resistance between CAN-HIGH terminal of 4WD ECM harness connector and CAN-HIGH terminal of ECM harness connector.
4. Measure the resistance between CAN-LOW terminal of 4WD ECM harness connector and CAN-LOW terminal of ECM harness connector.

Specification :below 1Ohms




5. Is the measured resistance within specification ?
