P0625 Generator Field/ F Terminal Circuit Low - General Information

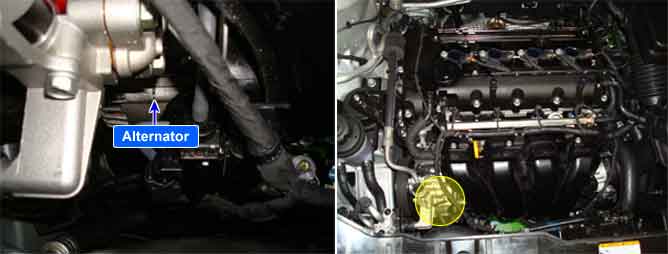

Component Location





General Description

PCM monitors the normality of PWM signal in alternator's FR circuit by comparing with the criterion value under IG ON state.
The signal duty is directly propotional to electrical load.

DTC Description

P0625 is set when the PWM signal(Low side) in FR circuit is below 80% during engine stop state.
P0625 is set when the PWM signal(Low side) in FR circuit is below 3% during engine running state.

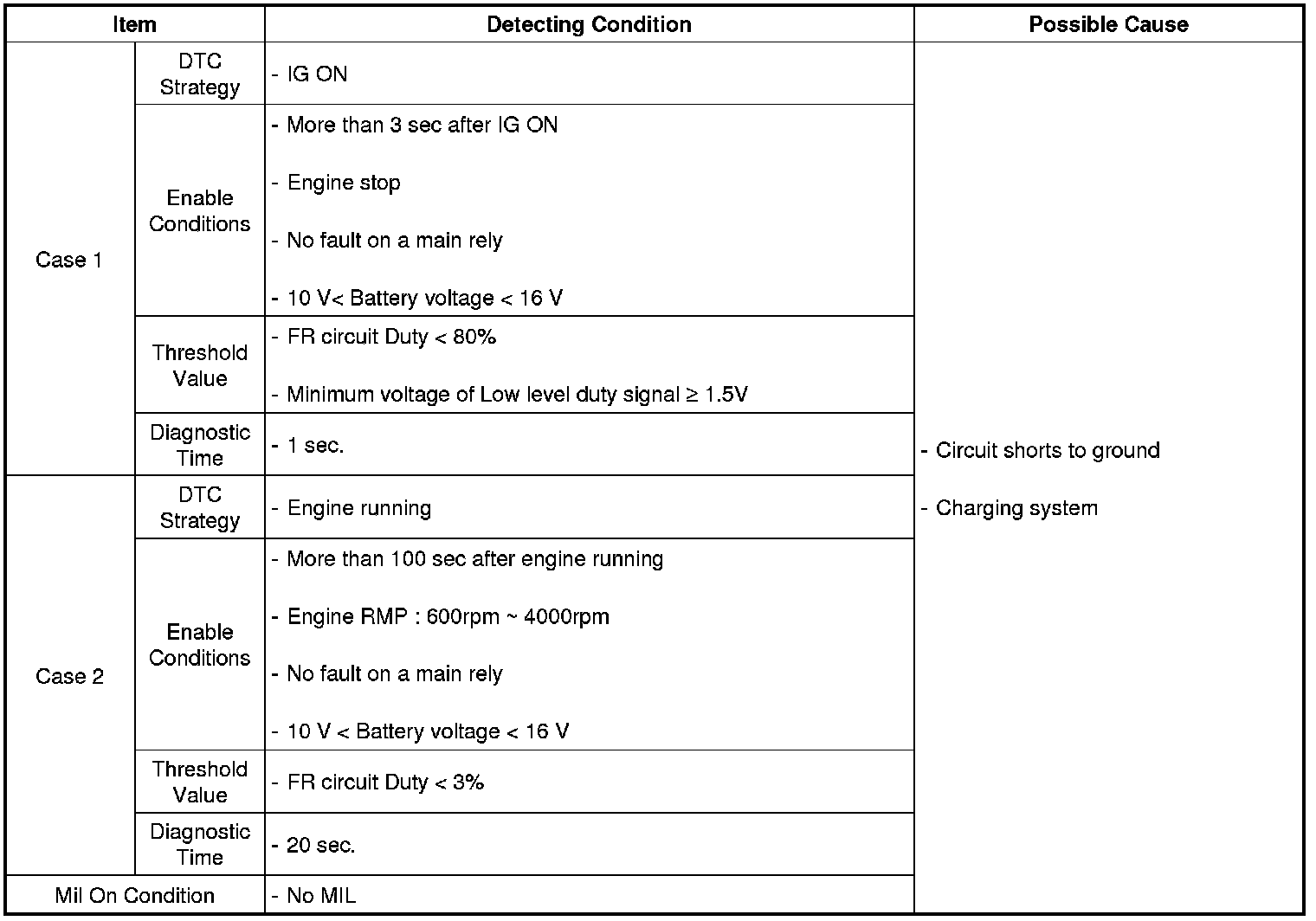

DTC Detecting Condition

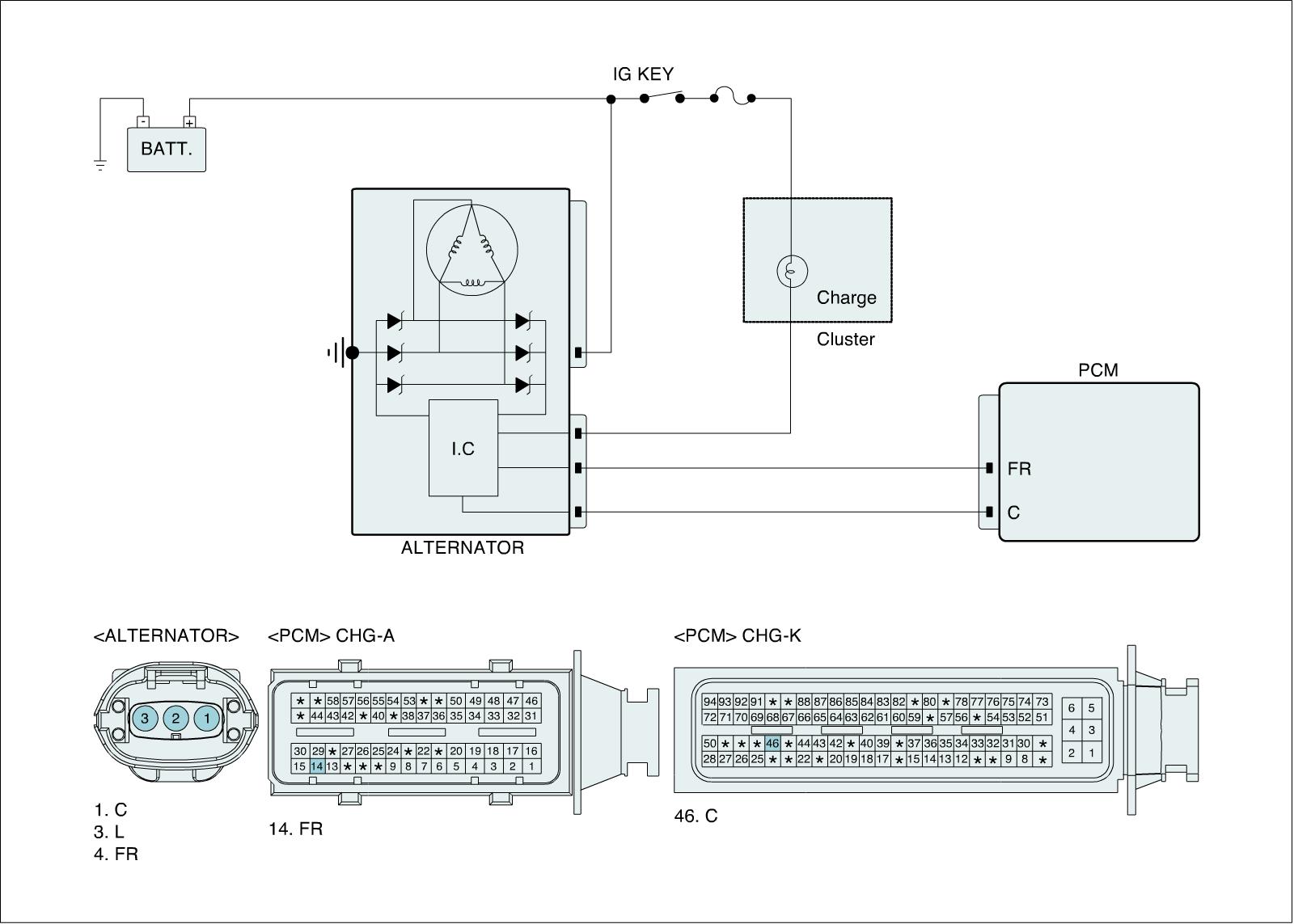

Diagnostic Circuit Diagram





Signal Waveform & Data

Case 1

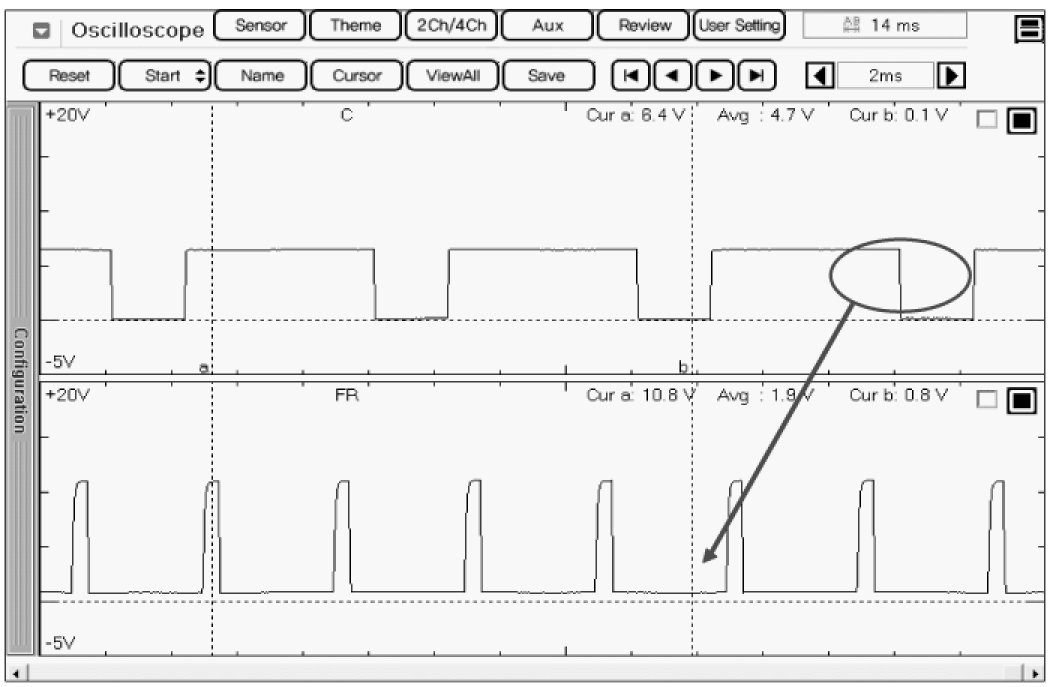

- The normal FR circuit duty signal under IG ON state
-> Low level voltage < 1.5V : Normality , Low level voltage ≥ 1.5V : Abnormality
Case 2

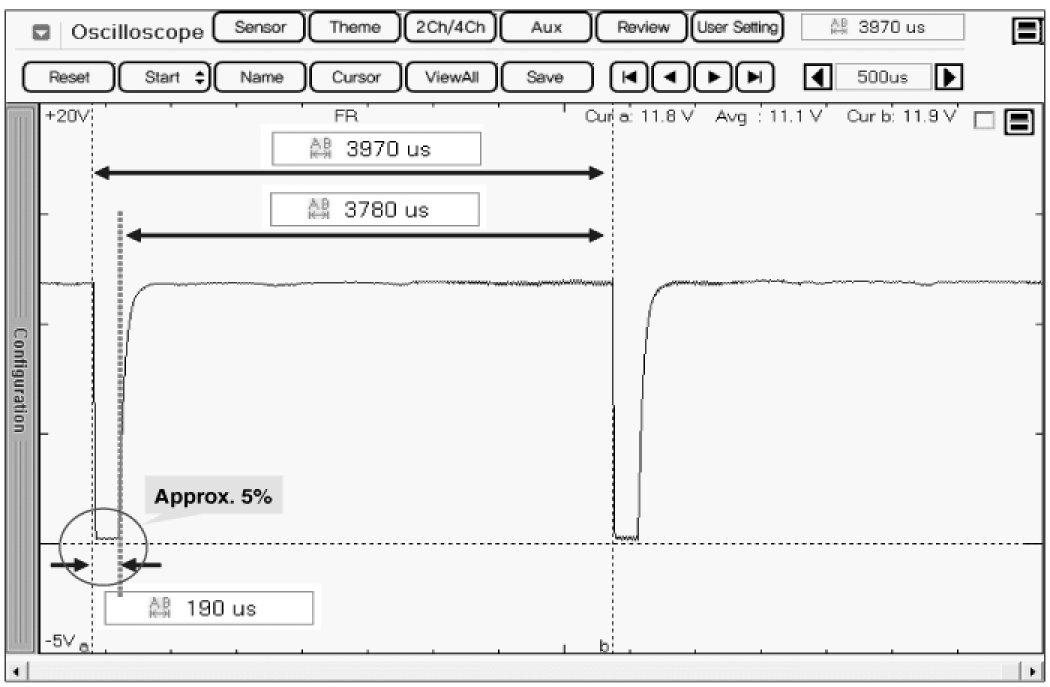

- The normal FR circuit duty signal under engine running state
-> 5% < FR circuit duty < 95% : Normality , FR circuit duty < 3% : Abnormality
