Scantool Diagnostics

Electronic Stability Control
C1702 Variant Coding Error - Scantool Diagnostics

Variant coding

1. Connect scantool to Data Link Connector(DLC)
2. IG "ON"
3. Using scantool, Perform Variant coding program.(Fig.1)
4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
6. Go to "Component Inspection" procedure.

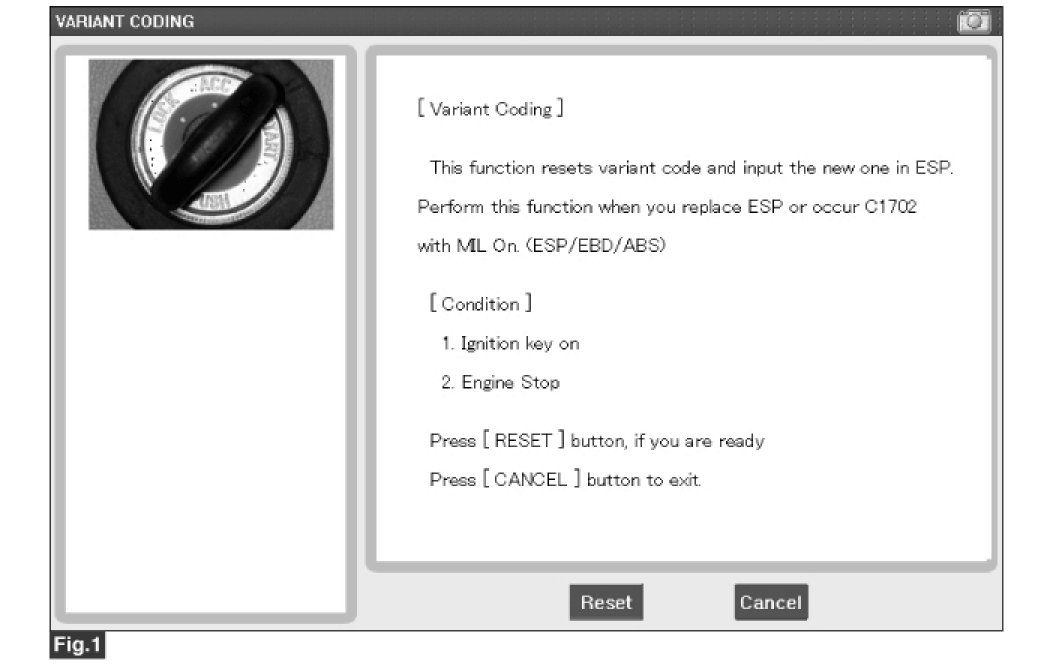

Fig.1) Scantool diagnostic item -VARIANT CODING
