General Information

Electronic Stability Control
C1526 DBC Switch Error - General Information

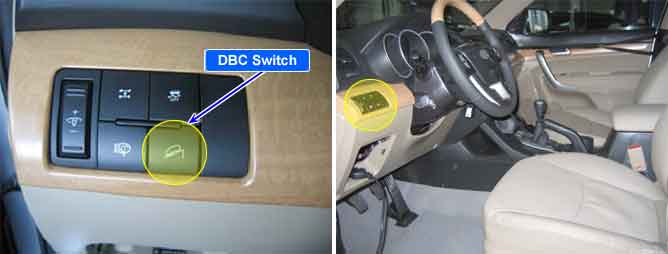

Component Location





General Description

The DBC function is the shorten word of Downhill Brake Control function. When a vehicle goes down the hill, just pushing the DBC switch enables the car to keep its vehicle's speed at a constant value without operating the brake pedal. The DBC function is operated when the vehicle is on the decline and its velocity is under the predetermined speed.

DTC Description

This DTC is set if the DBC switch has a short circuit and the DBC function is inhibited.

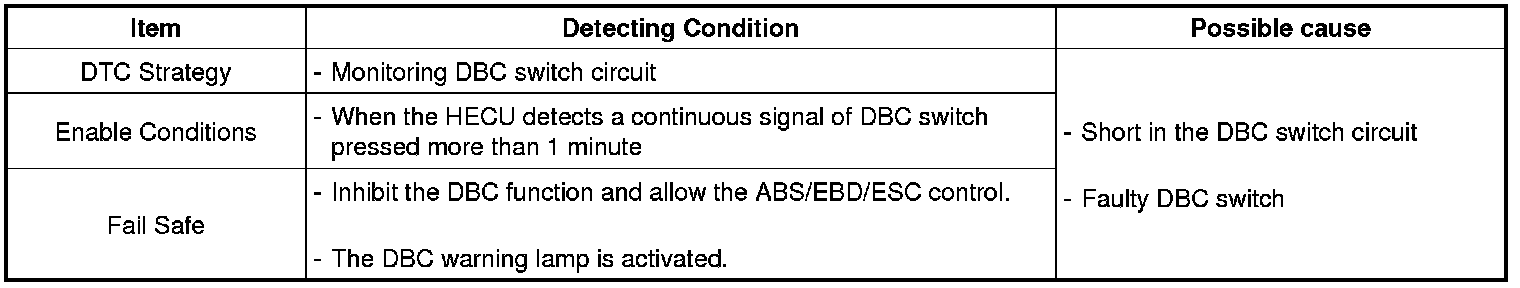

DTC Detecting Condition





Specification

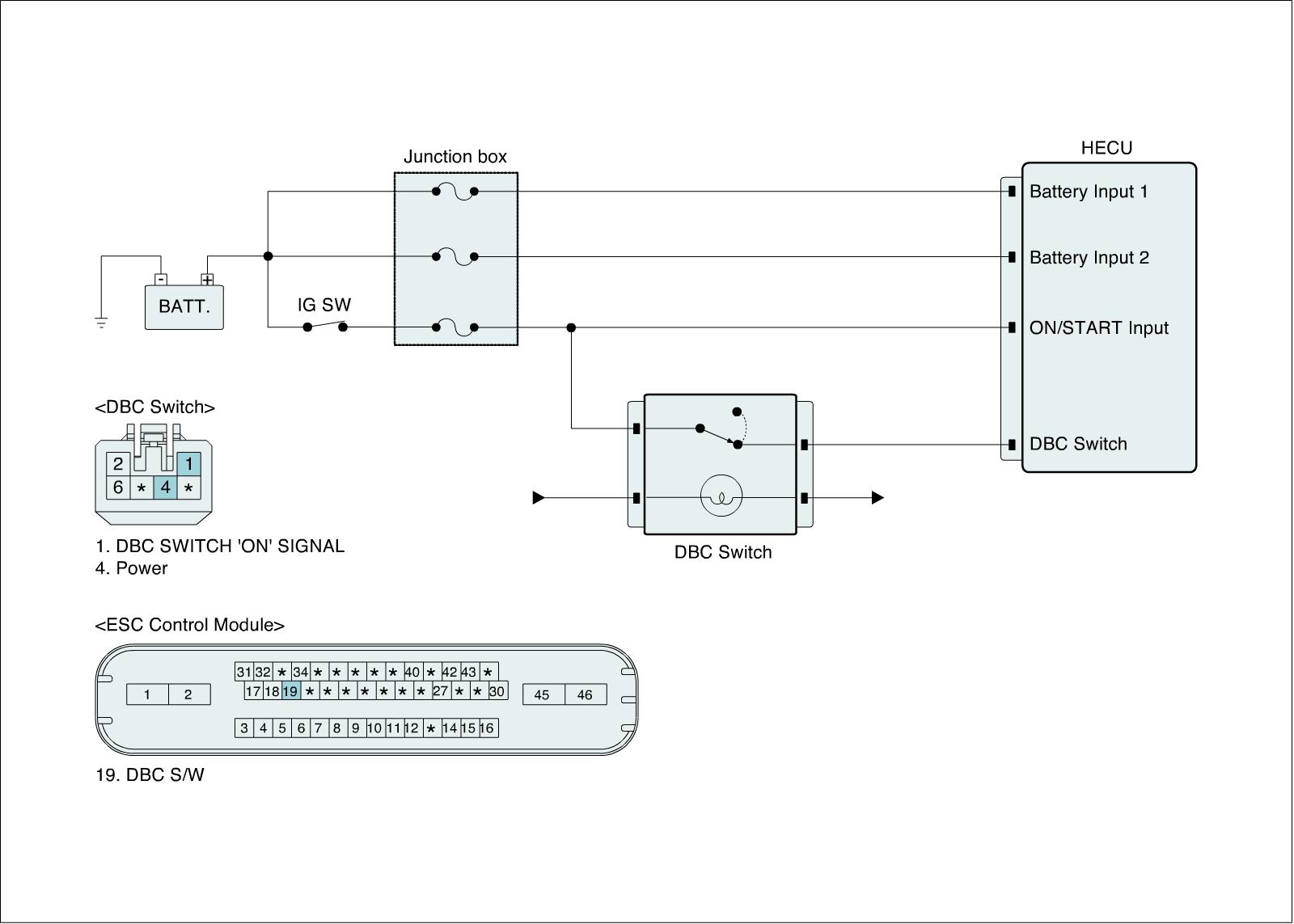

Diagnostic Circuit Diagram
