Component Inspection

Electronic Stability Control
C1526 DBC Switch Error - Inspection/Repair:_:Component Inspection

Component Inspection

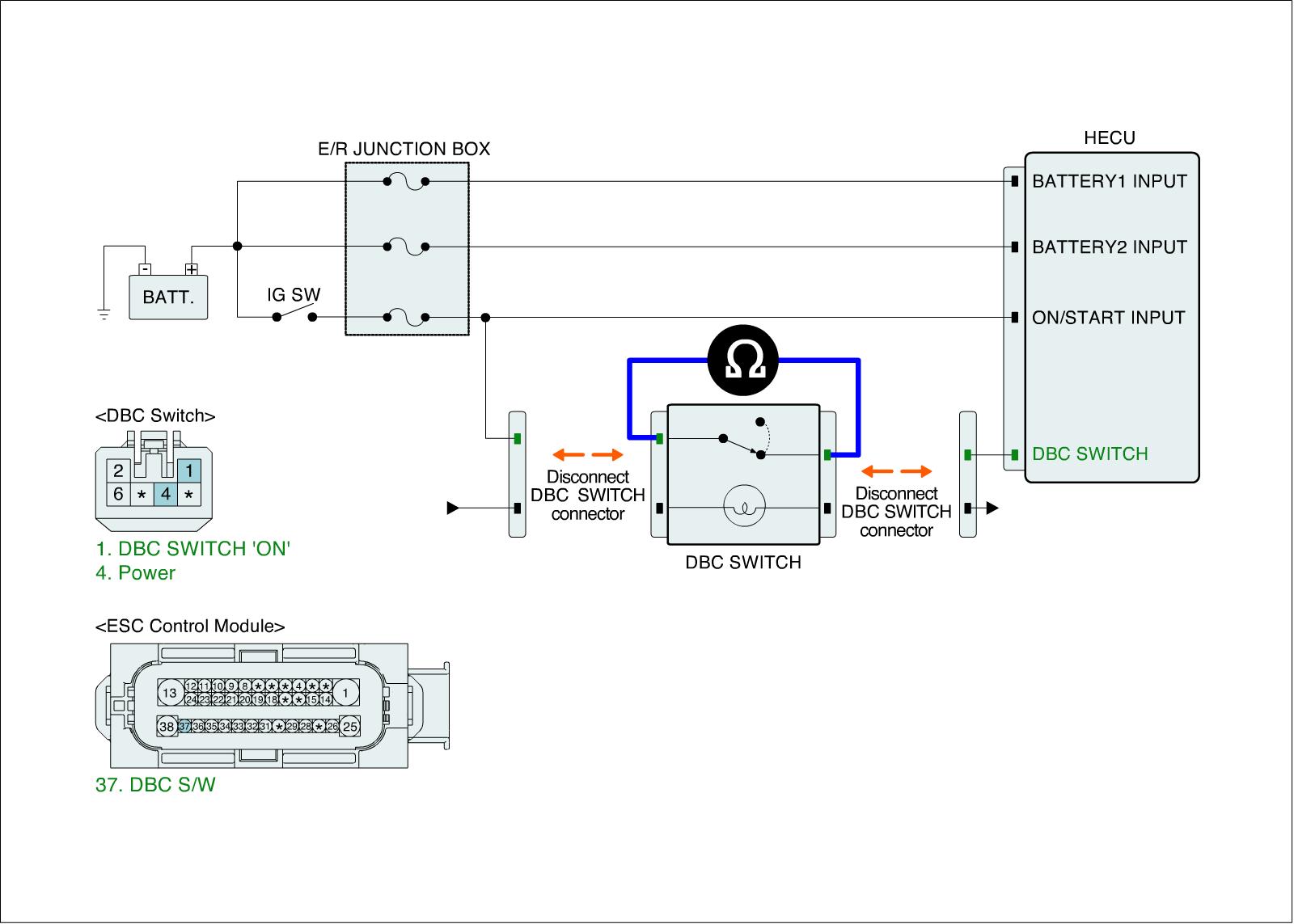

DBC switch Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the DBC switch connector.
3. Press the DBC switch.
4. Measure resistance between power terminal and siganl terminal of the DBC switch connector.

Specification :Approx. below 1Ohms

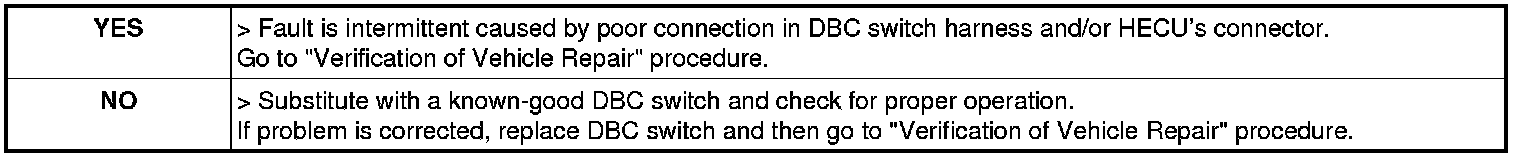

5. Is the measured value within specifications?
