Scantool Diagnostics

Electronic Stability Control
C1513 Brake switch error - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON" & Engine "OFF".
3. Press the brake pedal.
4. Check the service data related to "Brake Switch" on the scantool.

Specification :The brake switch's signal changes from OFF to ON.

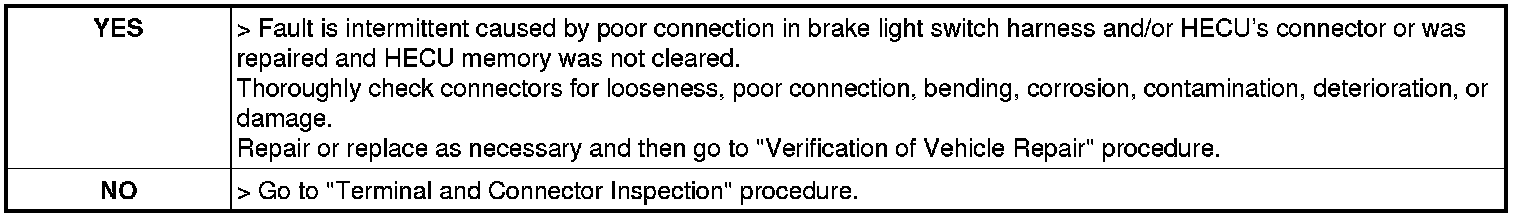

5. Does the service data change normally?
