General Information
Tire Pressure Monitoring
C1335 Rear Right Sensor Fault - General Information
Component Location
General Description
The TPMS system is the shorten word of Tire Pressure Monitoring System. This system monitors the pressure of the tire and when it drops below a certain pressure, the TPMS ECU makes the warning lamp turn on for notifying the driver. This system consists of TPMS ECU(or TPMS Receiver), TPMS sensors. Among components of TPMS system, the TPMS sensor is installed at each wheel rim. and its role is to measure the air pressure and the temperature of the tire and then it transmits its signals to TPMS ECU. The communication from TPMS sensors is done via RF(Radio Frequency) at a frequency.
DTC Description
This DTC indicates that the WE Sensor has detected that it has an internal fault (measurement diagnosis or hardware diagnosis status). The most likely cause is sensor failure.

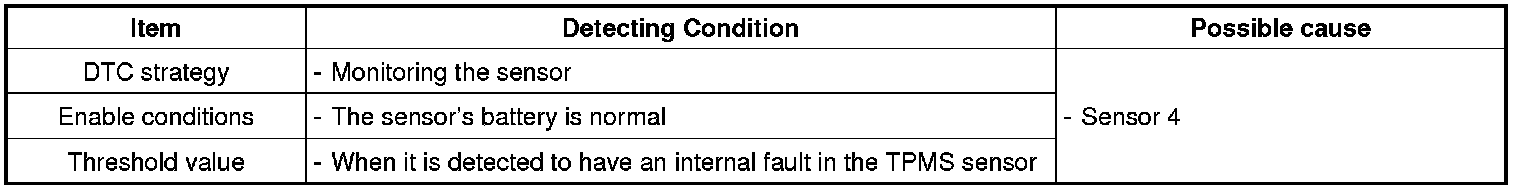

DTC Detecting Condition
