Component Inspection

Electronic Stability Control
C1285 Longitudinal G Sensor Not Calibrated - Inspection/Repair:_:Component Inspection

Component Inspection

longitudinal G sensor Calibration
1. IG ON, ENG OFF.
2. Stand the vehicle on a flat ground without any inclination.
3. Set the steering wheel at the center position.
4. Keep the vehicle under normal tire pressure condition and normal loading condition.
5. Connect scantool to Data Link Connector(DLC).
6. Perform Longitudinal G Sensor Calibration.(figure 1).

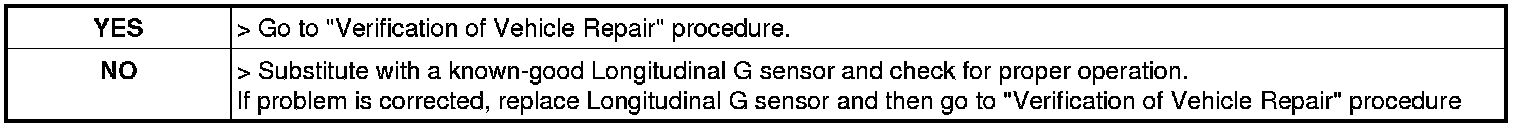

7. Is "Steering angle sensor calibration." completed normally?
