C1261 Steering Angle Sensor Not Calibrated - Scantool Diagnostics

Monitor Scantool Data

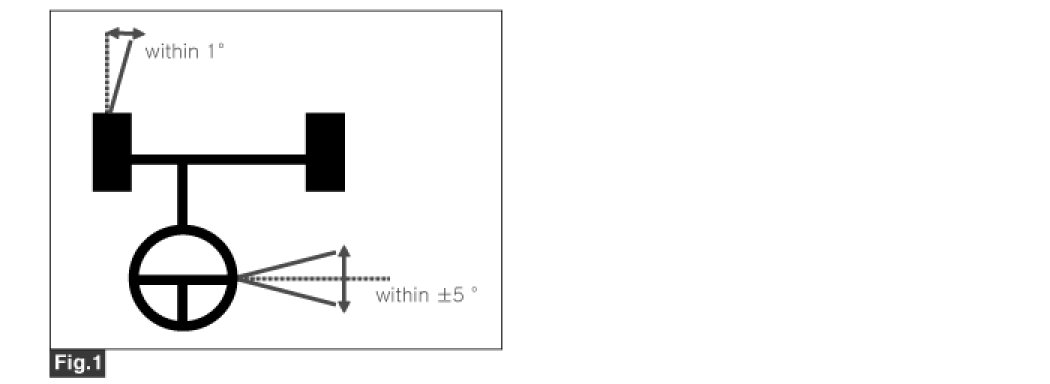

1. Line up wheels like Figure 1.
(1) Perform the wheel alignment.
(2) Line up the wheel in a straight.
(3) Drive the vehicle ahead and back 2 - 3 times without holding steering wheel.
2. Connect scantool to Data Link Connector(DLC).

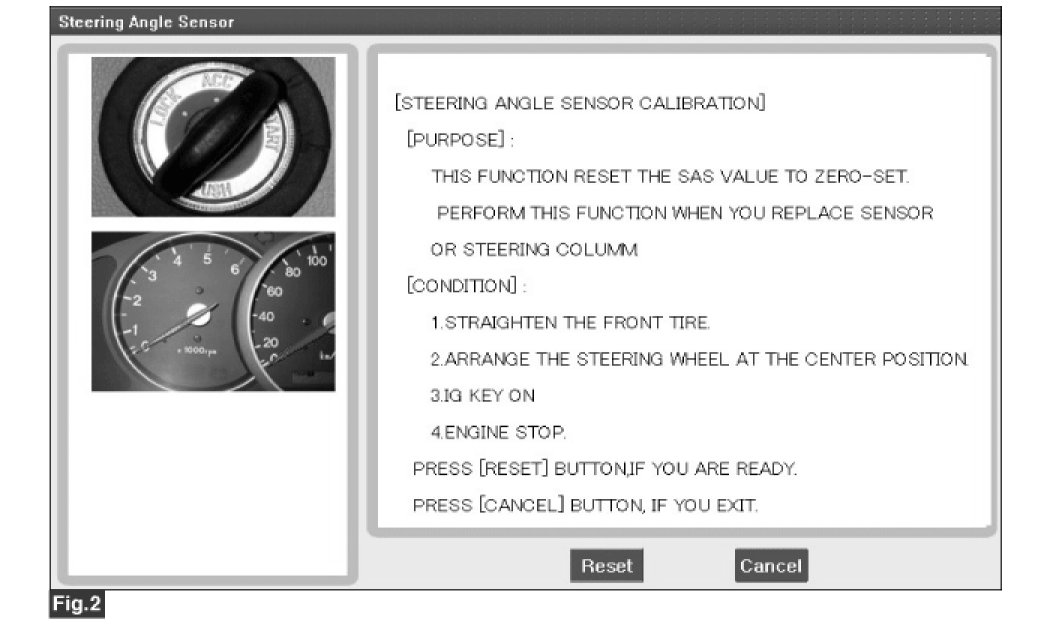

3. Perform steering angle sensor calibration.(Figure 2)
4. Disconnect scantool.
5. Check the condition of SAS zero point adjustment by driving the vehicle to right-turn and left-turn at least one time.

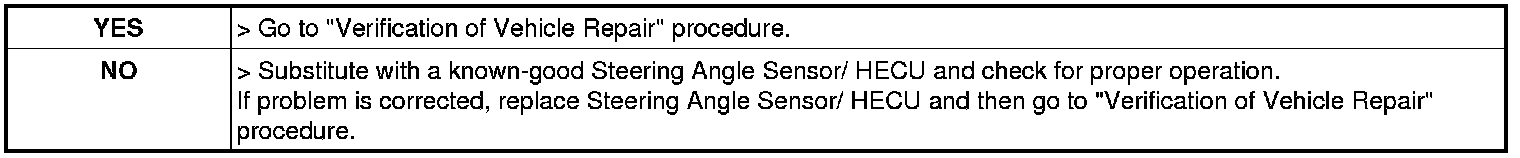

6. Is the calibration(zero point adjustment) completed?
