C1261 Steering Angle Sensor Not Calibrated - General Information

Component Location





General Description

The Steering wheel angle sensor uses two sensors ( A-sensor and B-sensor ) to determine the direction of the rotation. The main components of each sensor are LED, photo transistor and slit plate. The slit plate, which has 45 holes, is installed between LED and photo transistor, and generates signals if slit plate rotates according to the steering wheel rotation. The sensor signals are generated by photo transistor which is driven whenever the light passes through the holes. The HECU detects operating speed and direction of the steering wheel by this input signal, and the signal is used to input signal for anti-roll control.

DTC Description

The steering angle sensor in the ESC system is an absolute angle sensor type. For this reason, the steering angle sensor needs the zero setting(Calibration) by the scantool. If the calibration of this sensor is undone, this DTC is set.

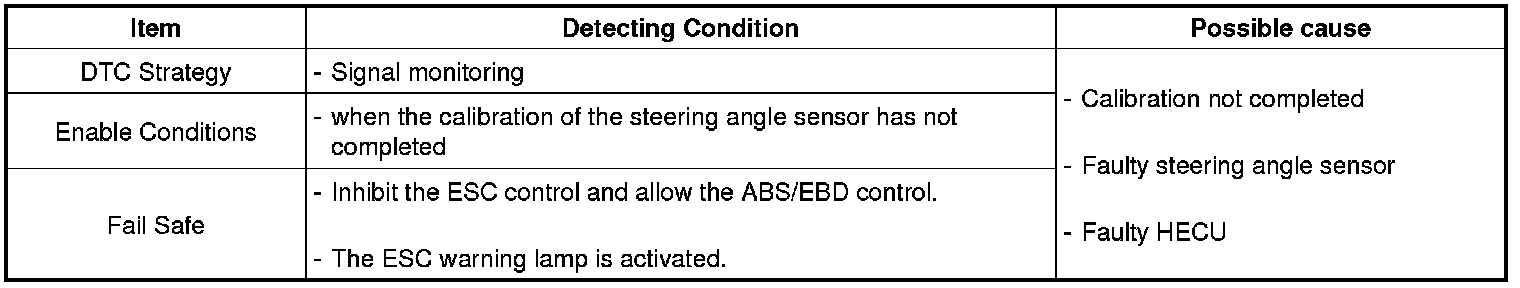

DTC Detecting Condition
