C1237 Primary Pressure Sensor-Signal - General Information

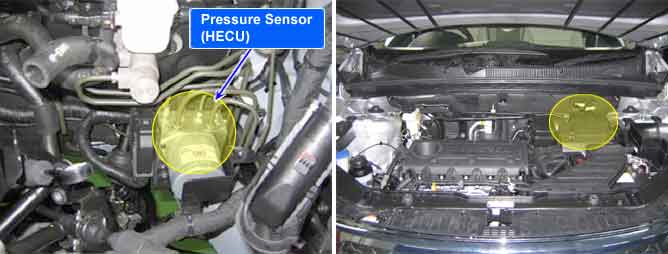

Component Location





General Description

The pressure sensor, installed in the HECU, senses the brake oil pressure to judge a driver's brake intention when the ESC program is operated. If pressure of master cyclinder is applied to pressure sensor, the strain of the piezo element is changed and then the resistance of bridge circuit is changed according to the changed strain. Therefore this changed resistance changes the output voltage of bridge circuit and the output voltage changes linearly. The sensor output is an analog signal in proportion to the supply voltage, and the HECU recognizes a pressure value according to signal ratio about supply voltage.

DTC Description

The failure is detected if the pressure sensor signal noise is out of normal range, or the pressure sensor signal is changed abnormally.
In spite of no brake switch signal, master cylinder pressure exceeds 20bar when brake switch is normal.

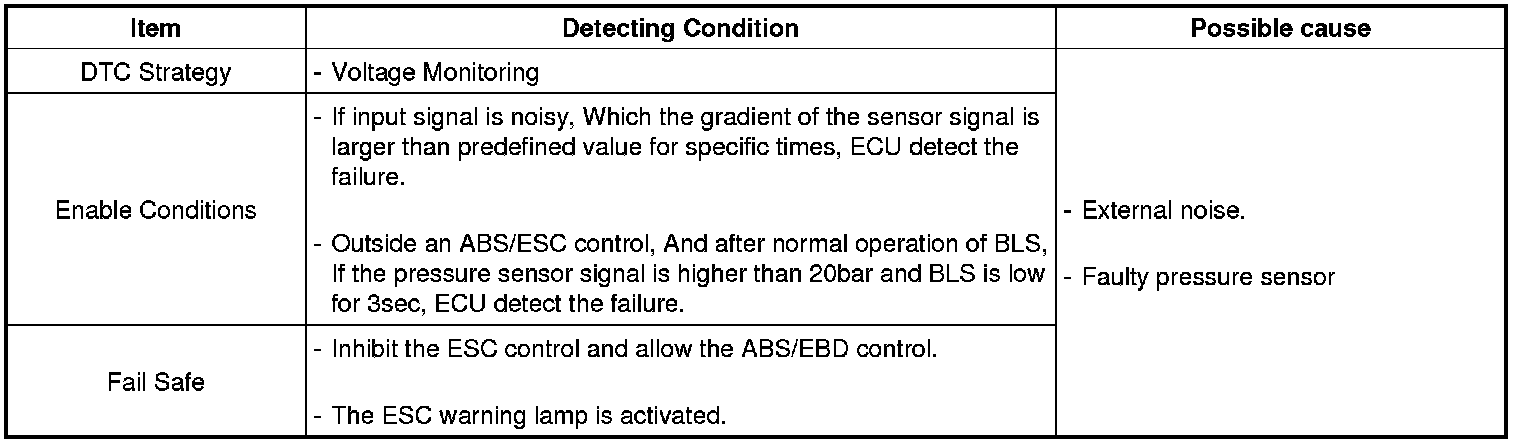

DTC Detecting Condition

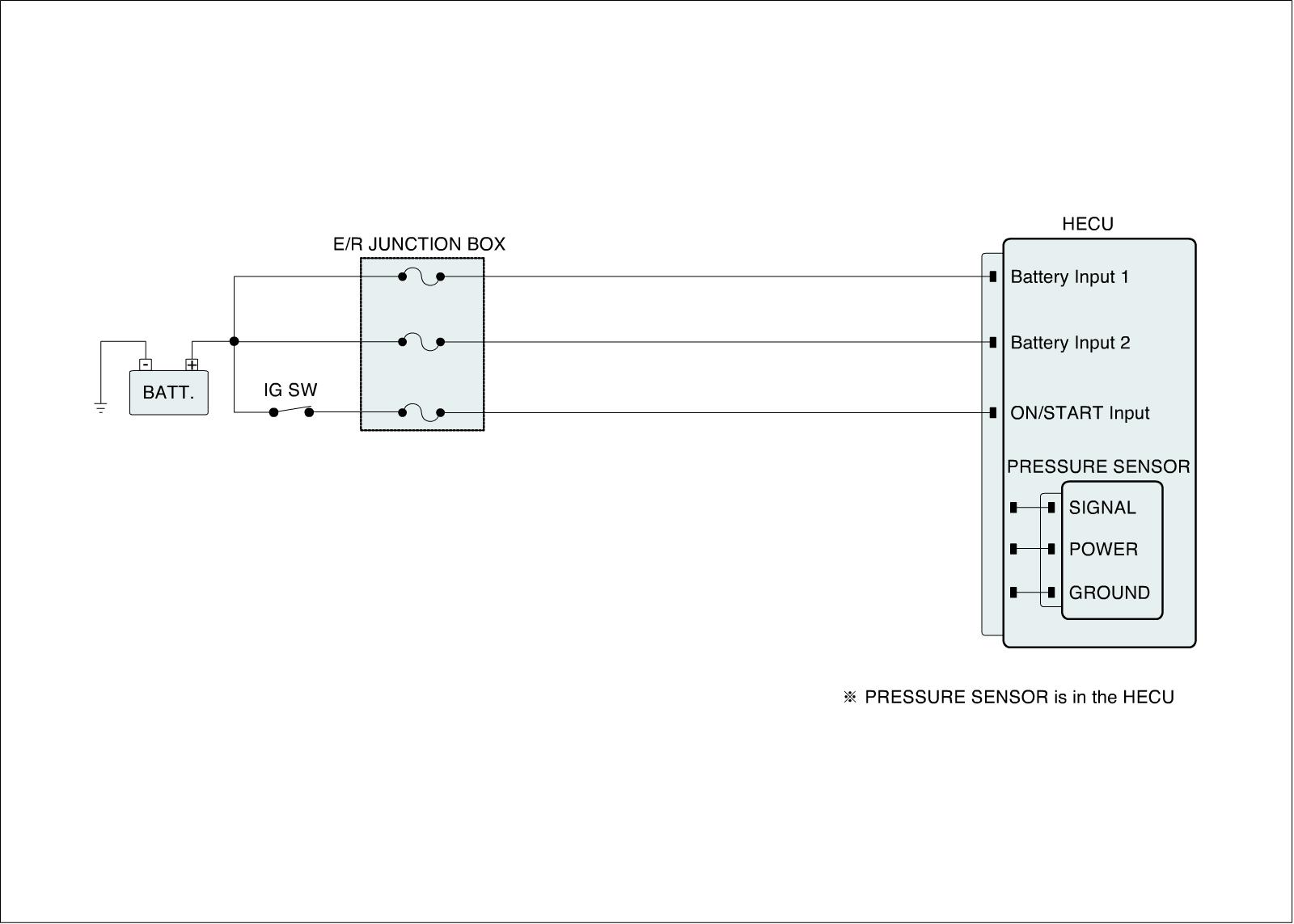

Diagnostic Circuit Diagram
