C1121 Front Left Sensor Battery Voltage Low - Scantool Diagnostics

Monitor GDS Data

1. Set up 'GDS' with 'GDS TPMS'.
2. Select "Vehicle S/W Management" function.
3. Select the "Sensor Status" mode of "Data Treatment" item.
4. Monitor the parameter of "Battery Level" on the screen.

Specification :'Battery Level' is 'OK'.

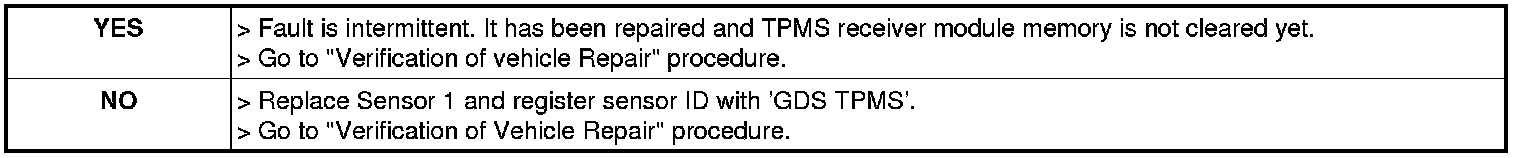

5. Is parameter within specifications?
