Scantool Diagnostics

Electronic Stability Control
C1112 Sensor source voltage - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Monitor the "BATTERY VOLTAGE, 5 VOLT REFERENCE" parameter on the scantool.

Specification :BATTERY VOLTAGE (Approx. 10V ~ 16V)
5 VOLT REFERENCE (Approx. 5V)

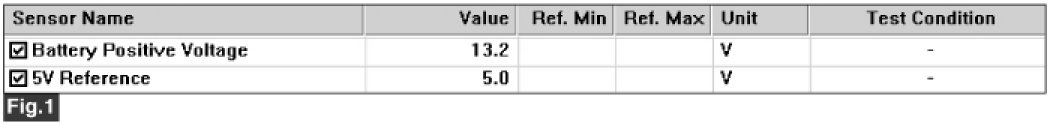

Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data

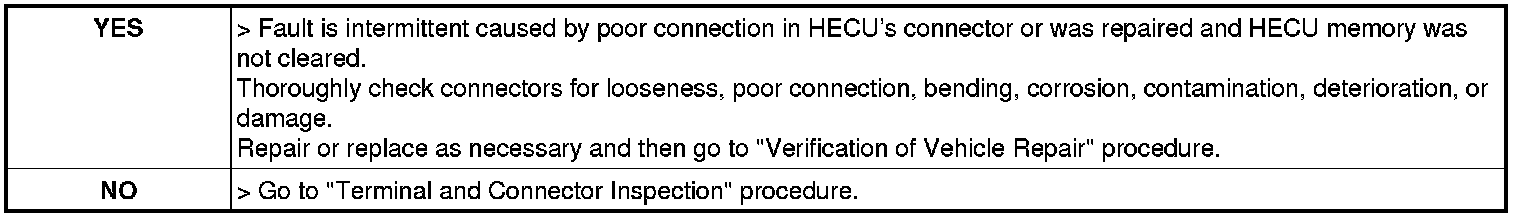

4. Is parameter displayed within specifications?
