B2502 Passenger Airbag Telltale Lamp Failure - General Information

Component Location





General Description

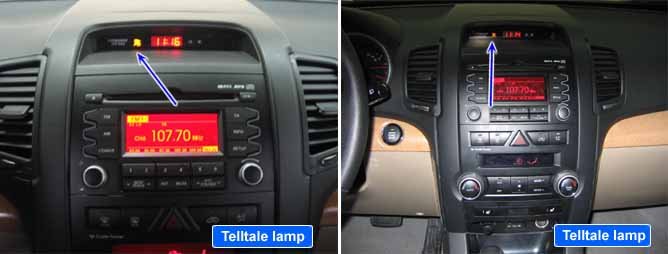

The SRS Telltale Lamp is located on the center of crash pad consists with the Digital Clock.
When the passenger sest are unoccupied, the Telltale Lamp lights up for the notice, and if passenger are occupied under seat,Telltale Lamp are goes off automatically.

NOTE:
If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.

DTC Description

DTC B2502 is recorded when occurrence of a malfunction in the Telltale indicator Lamp system.

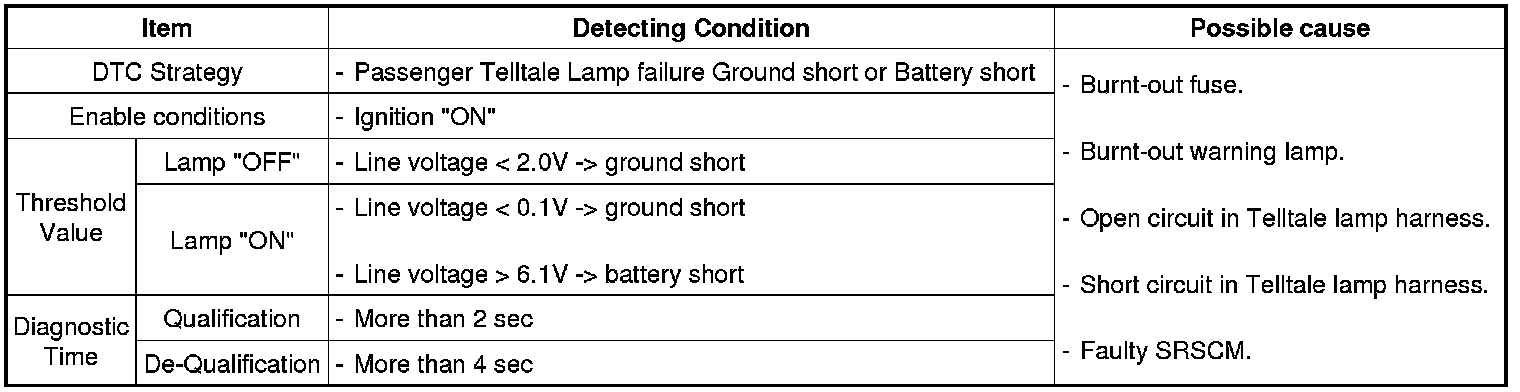

DTC Detecting Condition

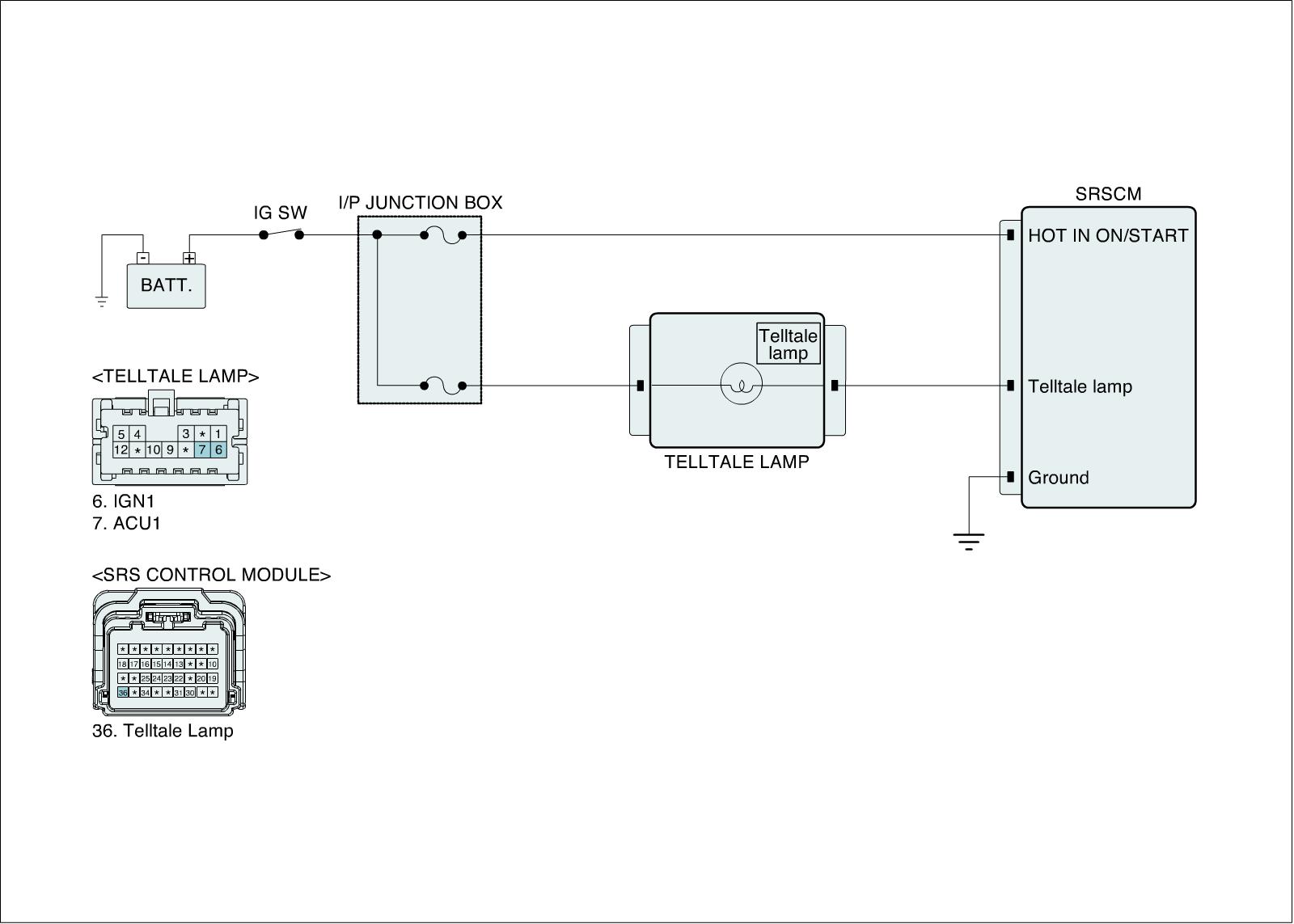

Diagnostic Circuit Diagram
