B1767 Body Sense Algo Cut-Off - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.
5. Adults needs to be sat down on the passenger seat.
6. Monitor the "Passenger side BodySense sensor ECU Real Time Status Of Current Data" parameter on the scantool.




Fig.1) Passenger side BodySense sensor ECU Real Time Status Of Current Data : CLASS 2

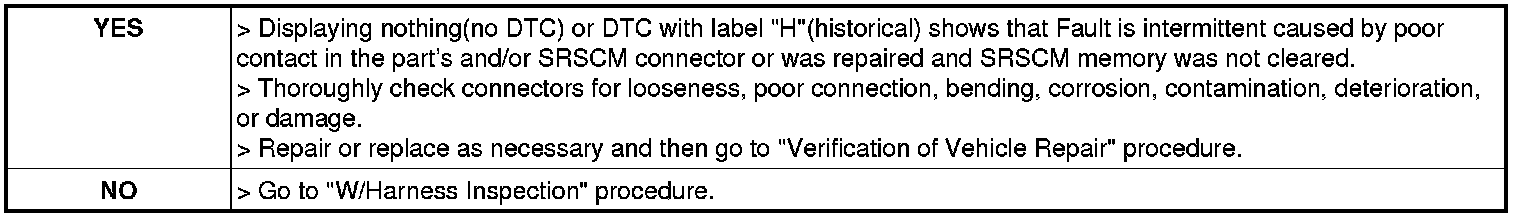

7. Are the parameters displayed correctly ?
