B1767 Body Sense Algo Cut-Off - General Information

Component Location





General Description

This DTC is set when Passenger side BodySense sensor Mat is fault by water.
If the seat is occupied, Bodysense sensor detects how passenger weighs and send signal to ACU via CAN.
ACU recognizes the signal as 3(three) different classifications; that is, 0(Empty), 1(Small), 2(Large).
With these signal, ACU determines whether it needs to deploy PAB(Passenger Airbag) or not.

DTC Description

BodySense is out of working when Passenger side BodySense sensor is over the limited measure value by water.

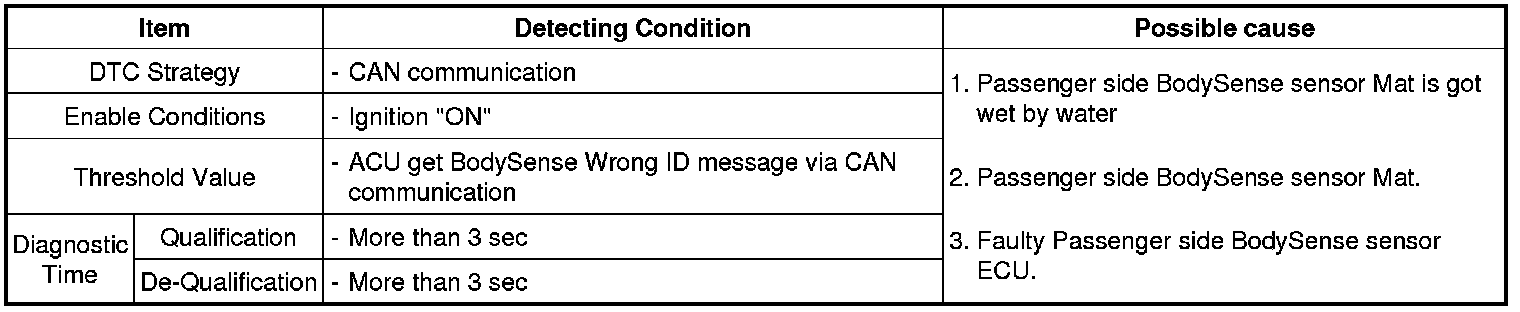

DTC Detecting Condition





Diagnostic Circuit Diagram
