Component Inspection

Airbag(Event #1)
B1765 Body Sense Communication Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Ignition "OFF".
3. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
4. Disconnect Passenger side BodySense sensor ECU connector.
5. Substitute the Passenger side BodySense sensor ECU and check for proper operation.

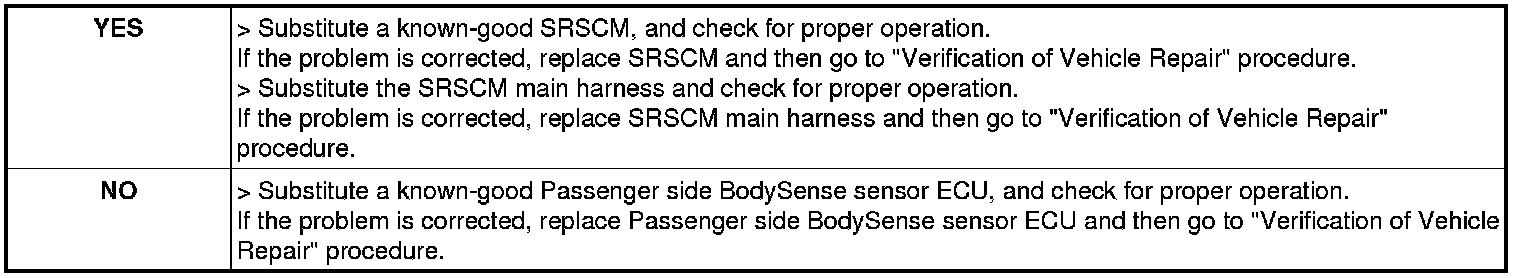

6. Is DTC present problem ?
