Airbag(Event #1)
B1730 Anchor Pretensioner front-Driver resistance too High - General Information

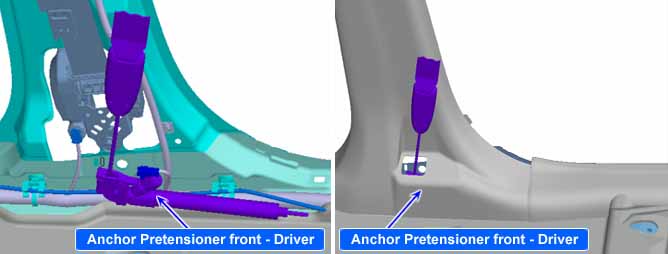

Component Location





General Description

Driver Anchor Pretensioner operates as well as Belt Pretensioner at the same time If it gets into its deploy condition after a collision. It is located at near anchor on driver seat and it is an equipment to make up for the existing short stroke. Driver Anchor Pretensioner is supported by two cable and it is an auxiliary equipment to prevent a driver from breaking away doubly as seat belt is being pulled toward achor side after a collision.

CAUTION:
Never measure resistance of Anchor Pretensioner front-Driver directly, Current of measuring device may cause unexpected airbag depoy.

NOTE:
If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.

DTC Description

The SRSCM sets DTC B1730 if the measured resistance value of Anchor Pretensioner circuit is more than the threshold value.
*In this case, SRSCM checks if there's any fault in circuit by sending current for a while.

DTC Detecting Condition





Specification

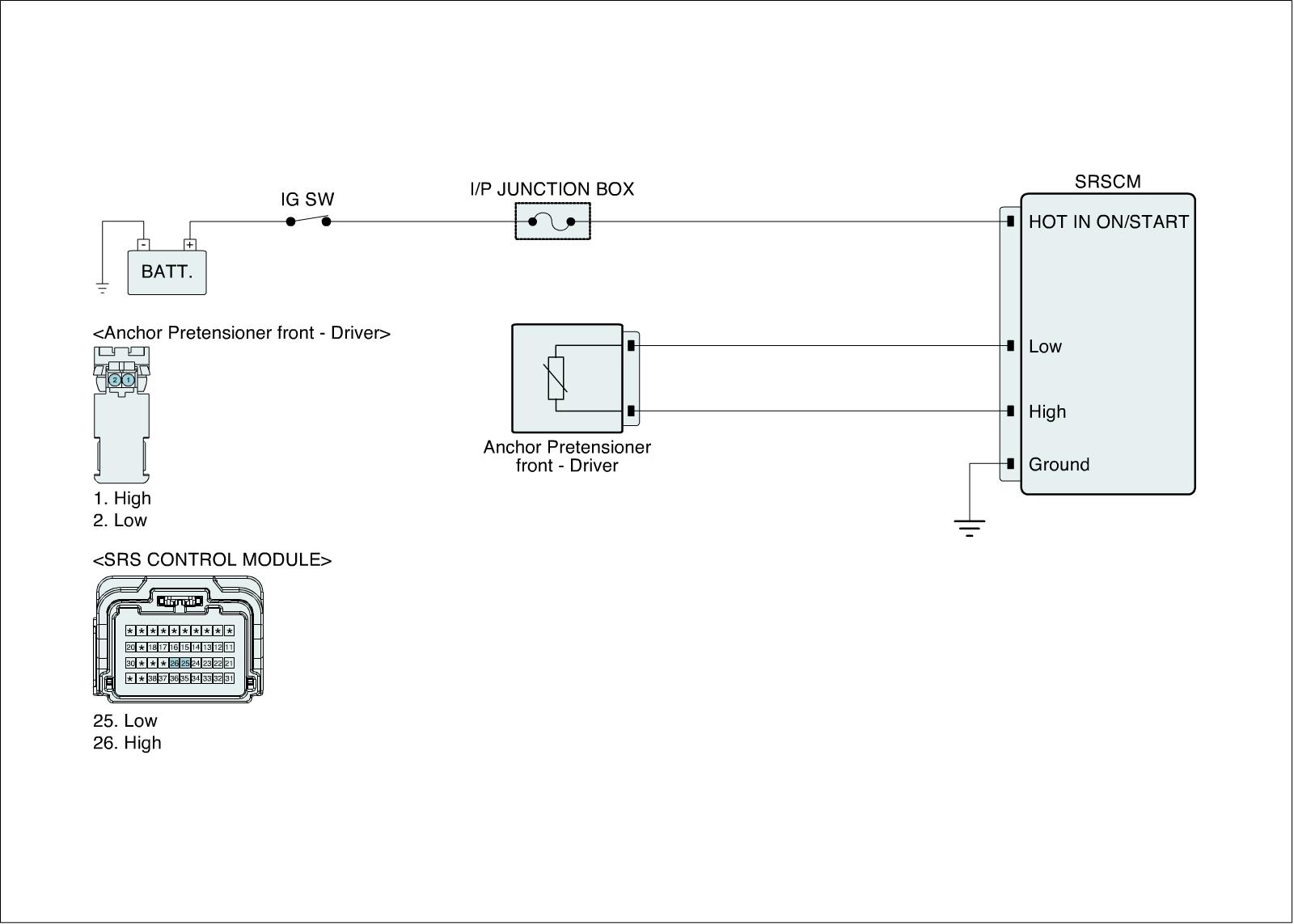

Diagnostic Circuit Diagram
