Scantool Diagnostics

Smart Key Unit
B1689 CAN Time-out PDM - Scantool Diagnostics

Monitor Scantool data

Check DTC
1. Check DTC with scantool.
2. Check DTC related CAN communication is set on PDM.
3. If there is DTC related PDM, Check the DTC according to troubleshooting guide
4. Repair and erase the DTC with Scantool.

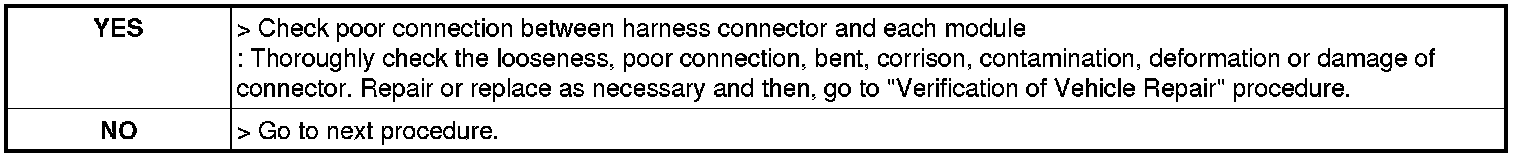

5. Is the DTC erased ?
