General Information

Instrument Panel Module
B1613 CAN timeout between IPM and CLU - General Information

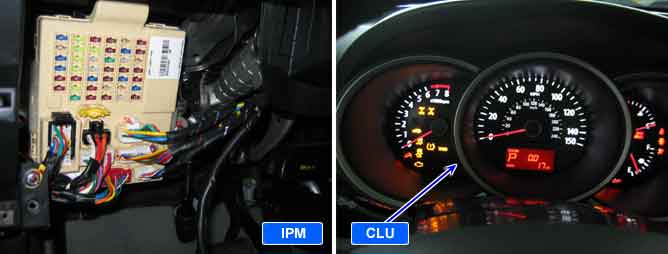

Component Location





General Description

This is DTC which is related with communication error between PDM and other units.
** Body CAN communication Control Units : IPM(Intelligent integrated Platform Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).
* CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.






DTC Description

This code is outputted when IPM can't receive data from CLU by CAN Line for 10 sec.

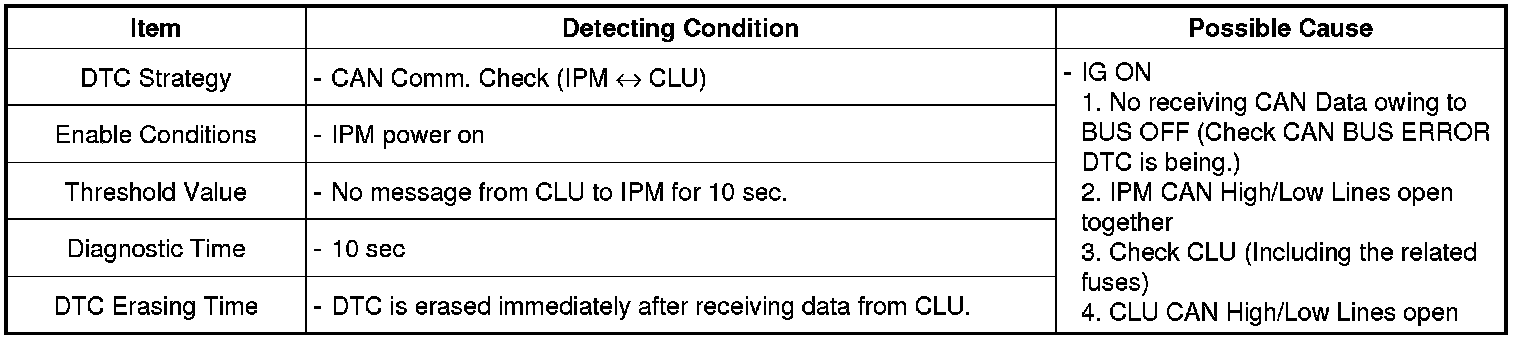

DTC Detecting Condition





Diagnostic Circuit Diagram










Signal Waveform & Data








Fig 1) CAN Low/High Signal Waveform
Fig 2) CAN BUS VOLTAGE LEVEL (LOW SPEED CAN)
