Component Inspection

Instrument Panel Module
B1613 CAN timeout between IPM and CLU - Inspection/Repair:_:Component Inspection

Component Inspection

Check internal errors of CAN communication units.
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Replace SMK with the new one and check DTC again.








*CAN communication units : IPM(Intelligent integrated Platform Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).

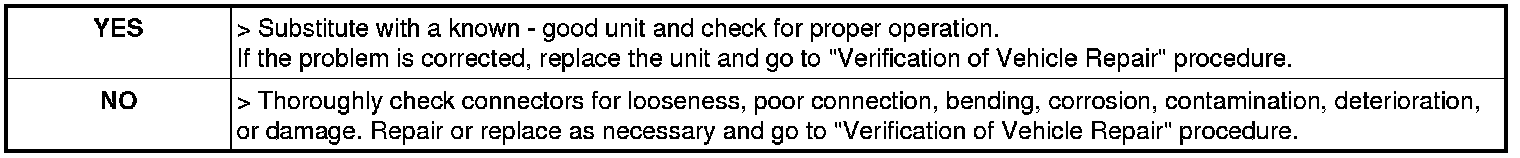

5. Is the code erased?
