General Information

Instrument Panel Module
B1603 CAN Bus Off - General Information

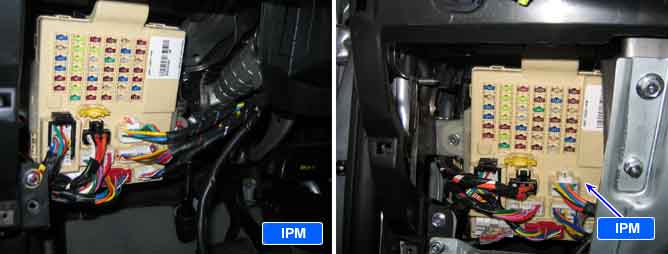

Component Location

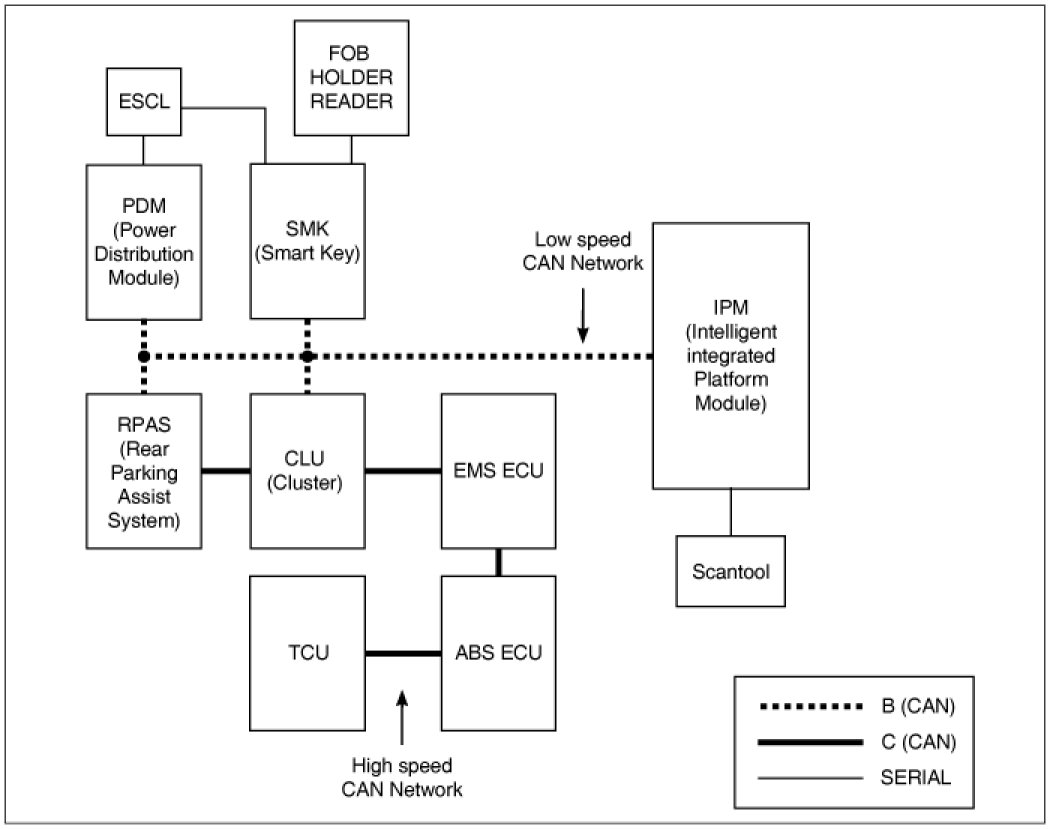

General Description

This is DTC which is related with communication error between PDM and other units.
** Body CAN communication Control Units : IPM(Intelligent integrated Platform Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).
* CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.






DTC Description

This is DTC which is related with communication error between IPM and other units.
(** Control Units : IPM(Intelligent integrated Platform Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).
Case1: After short between SMK CAN Low Line and High Line, short to ground together.
Case2: After short between SMK CAN Low Line and High Line, short to power together.
** This code is occurred when It is not possible to transmit data by CAN Line in those way of Software and Hardware. But, It is possible to receive data by CAN Line.
This code reports BUS OFF status when data transmit error count number is over 255. The purpose is to verify the status of CAN controller and CAN communication line when error is detected.
According to operation condition, some of module which are connected to CAN line may not detect B1603.Also, B1602 coincides with B1603 at all times.

CAUTION:
Difference between CAN ERROR and CAN BUS ERROR
CAN Error : MIL On, CAN Bus Error : No MIL

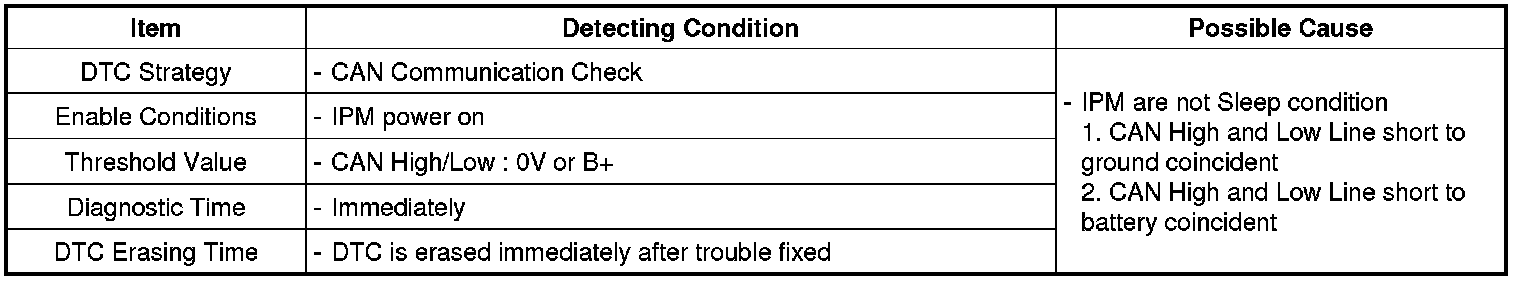

DTC Detecting Condition

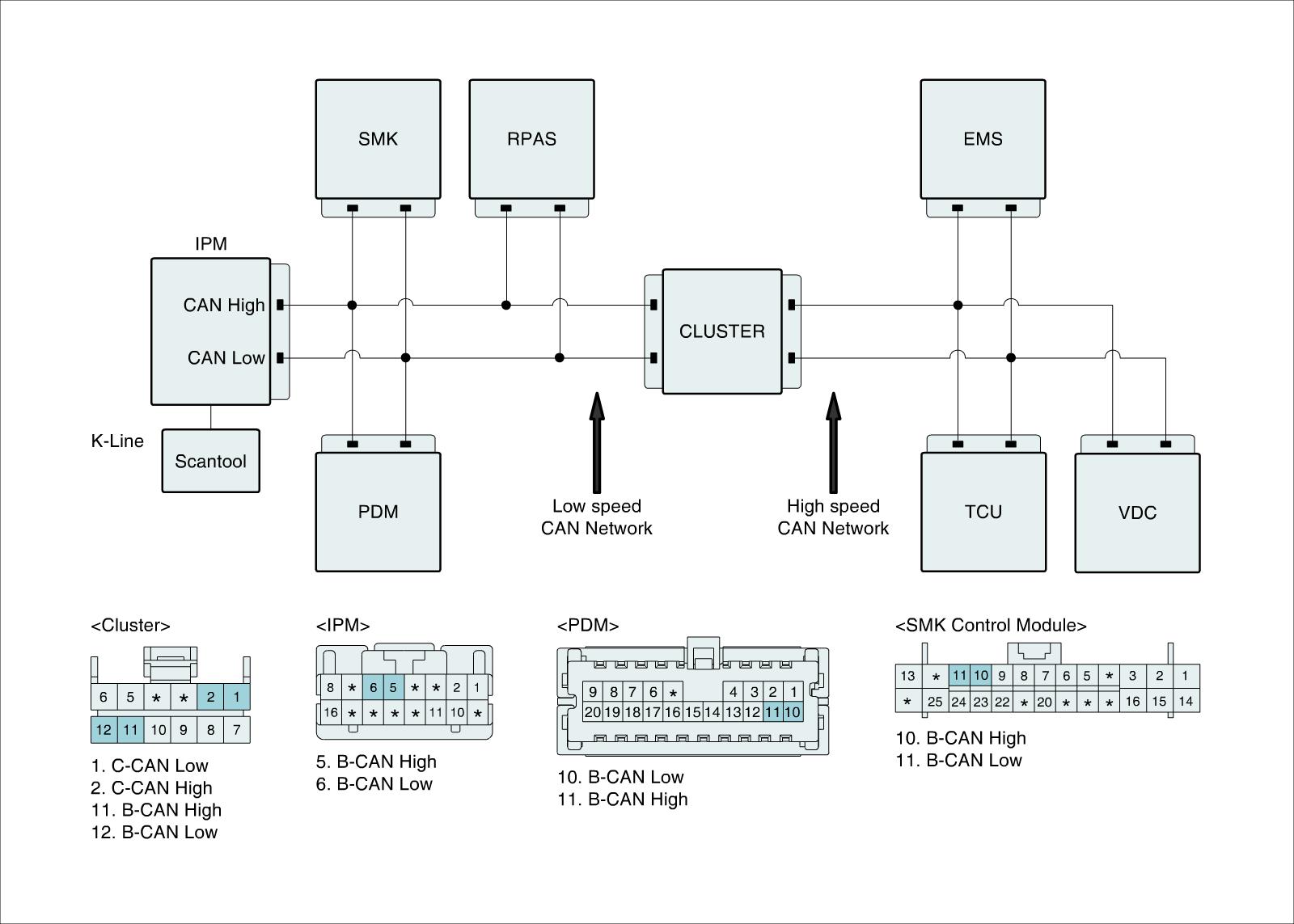

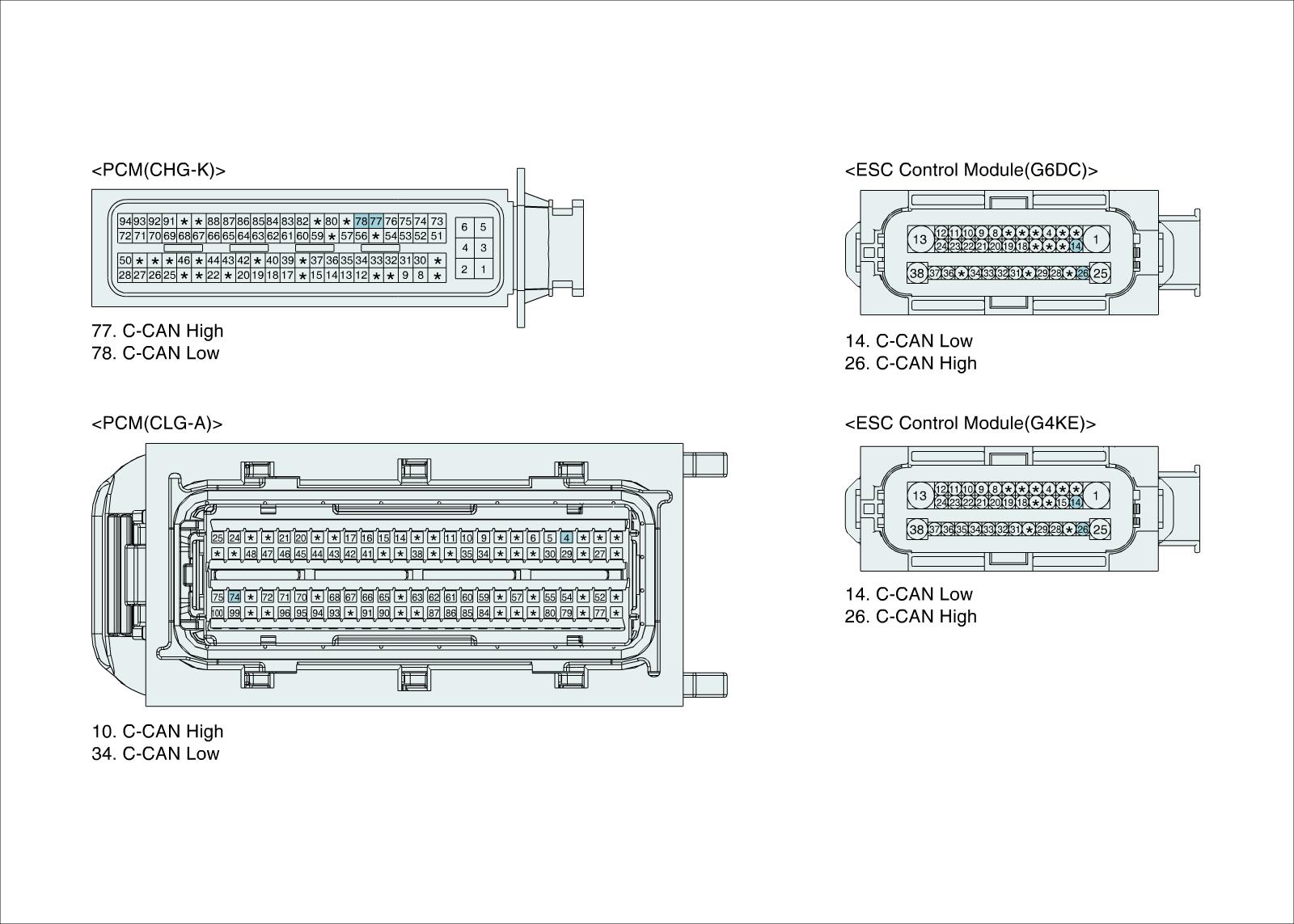

Diagnostic Circuit Diagram










Signal Waveform & Data








Fig 1) CAN Low/High Signal Waveform

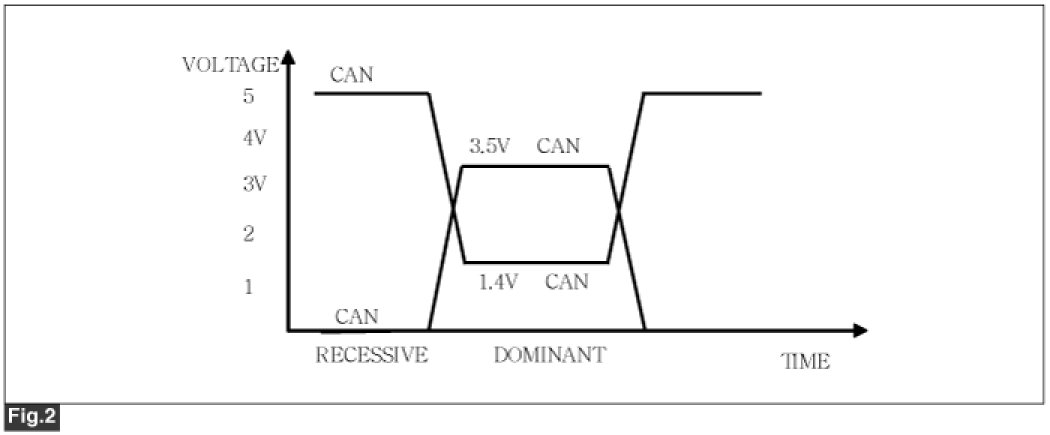

Fig 2) CAN BUS VOLTAGE LEVEL (LOW SPEED CAN)
