Component Inspection

Instrument Panel Module
B1603 CAN Bus Off - Inspection/Repair:_:Component Inspection

Component Inspection

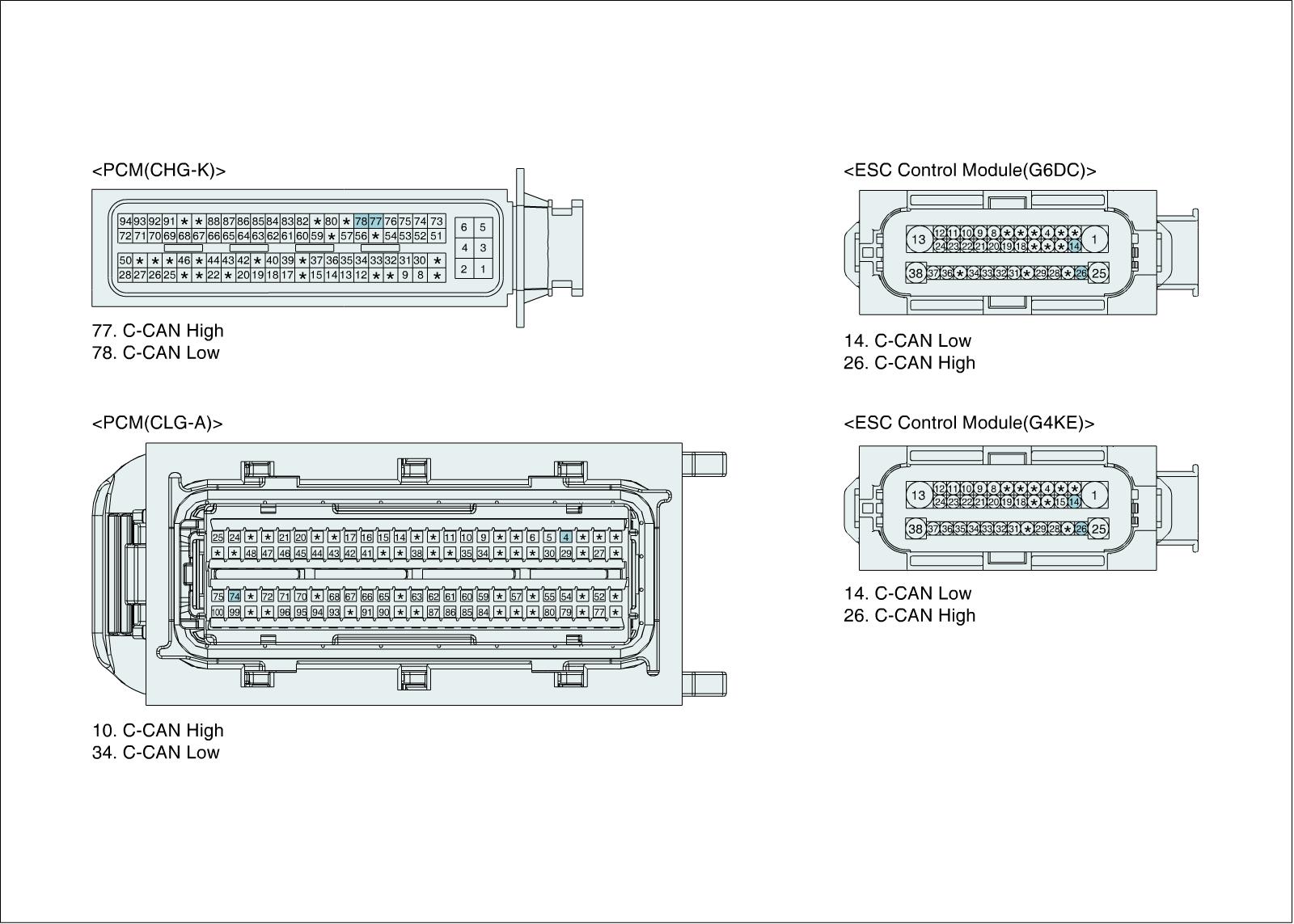

Check internal errors of CAN communication units.
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Disconnect DDM and monitor DTC to find the cause.

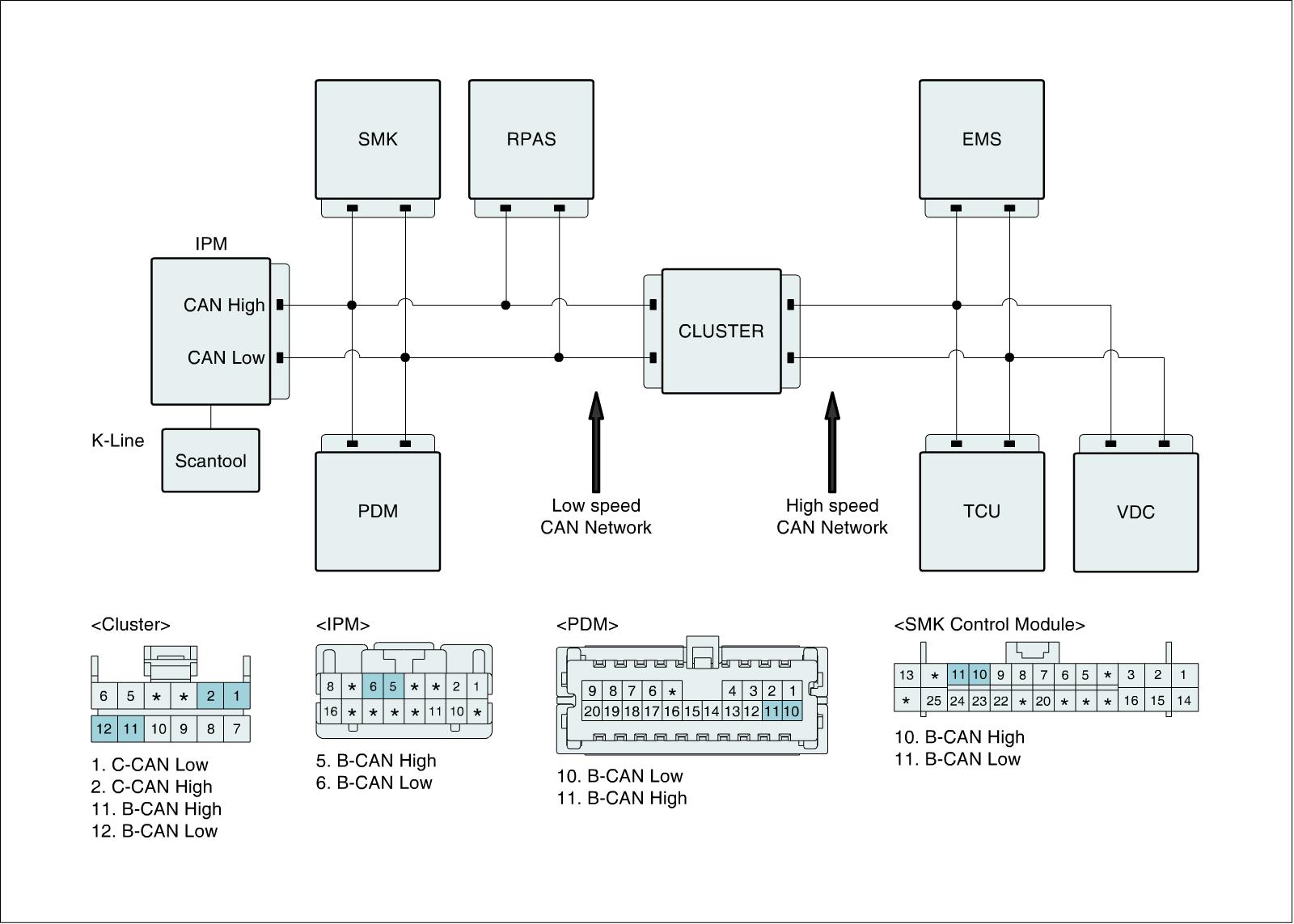

*CAN communication units : IPM(Intelligent integrated Platform Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).

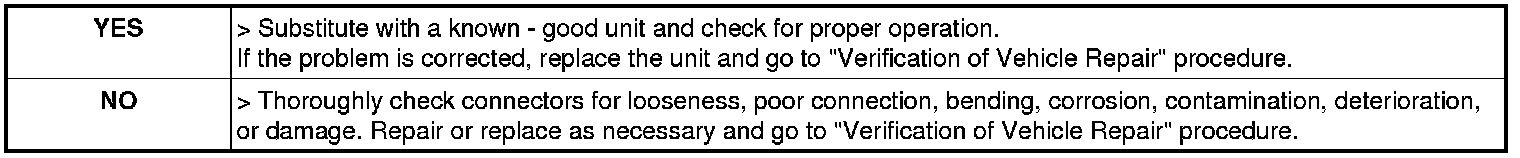

5. Is the code erased?
