B1602 CAN Error - General Information

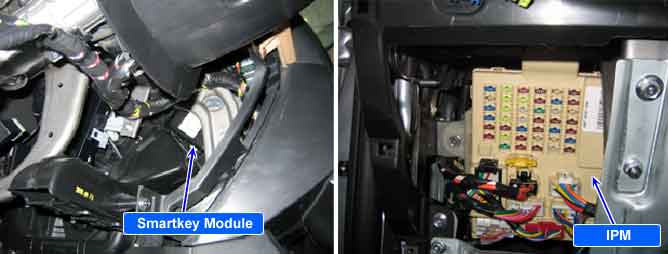

Component inspection





General Description

CAN Communication is a circuit, consists of CAN LOW and CAN HIGH, in order to communicate among control units.
Control Modules are respectively communicating via CAN line in order to control Body Electrical.






DTC Description

DTC B1602 is set if Smartkey Module detects that CAN HIGH or CAN LOW is short to battery, short to ground, open and short between CAN High and CAN Low each other.

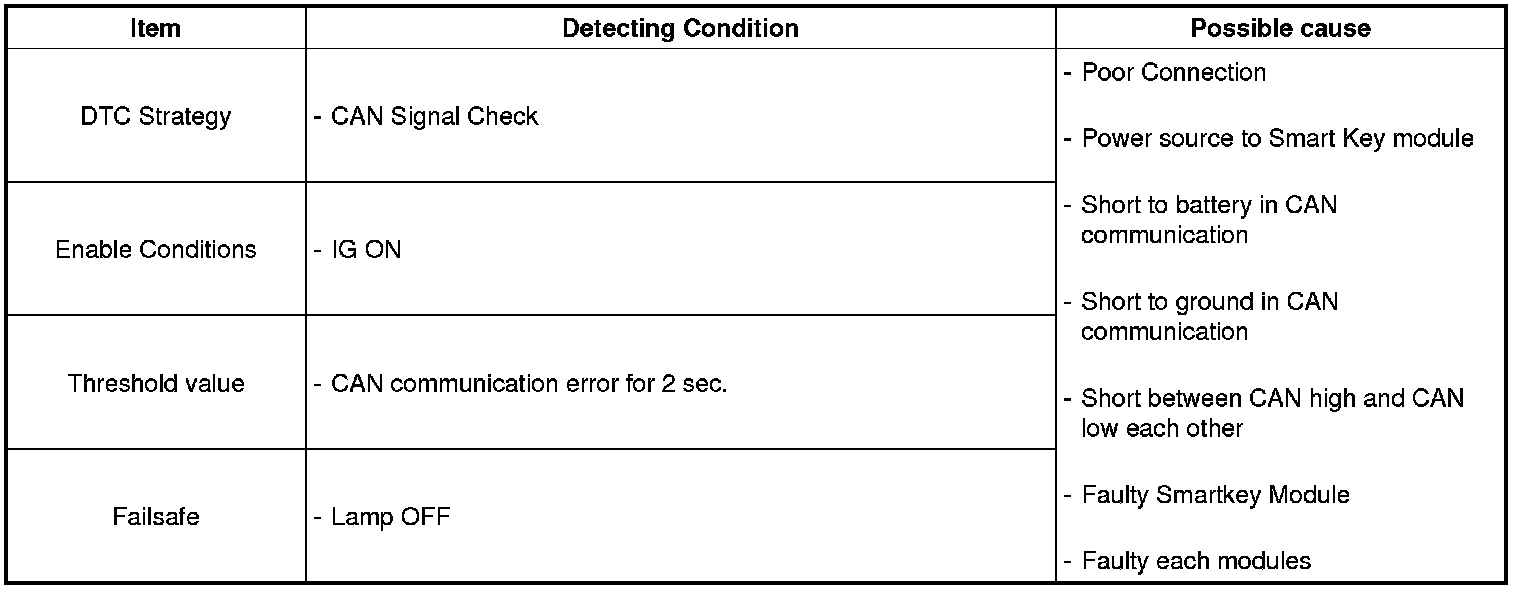

DTC Detecting Condition

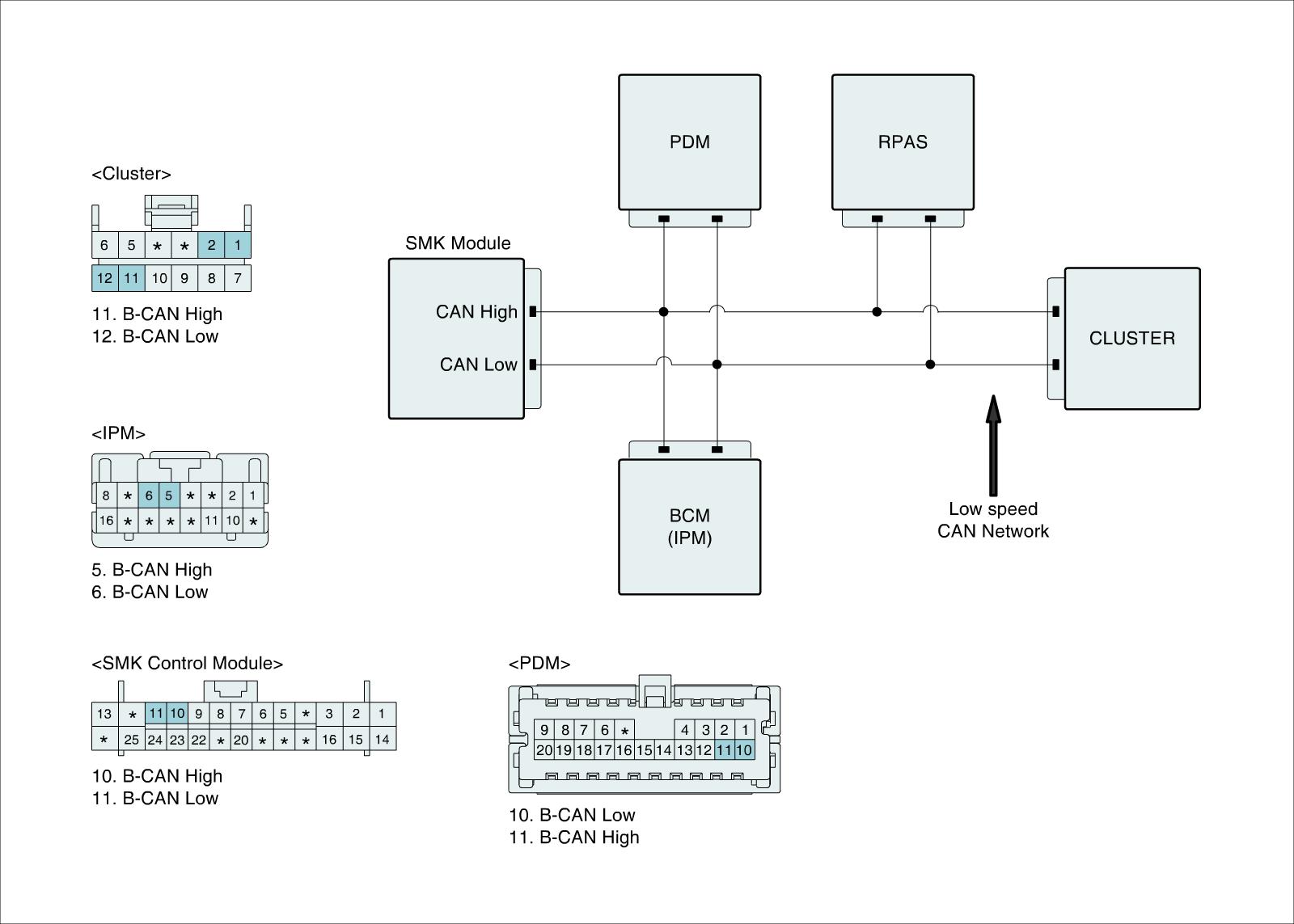

Diagnostic Circuit Diagram

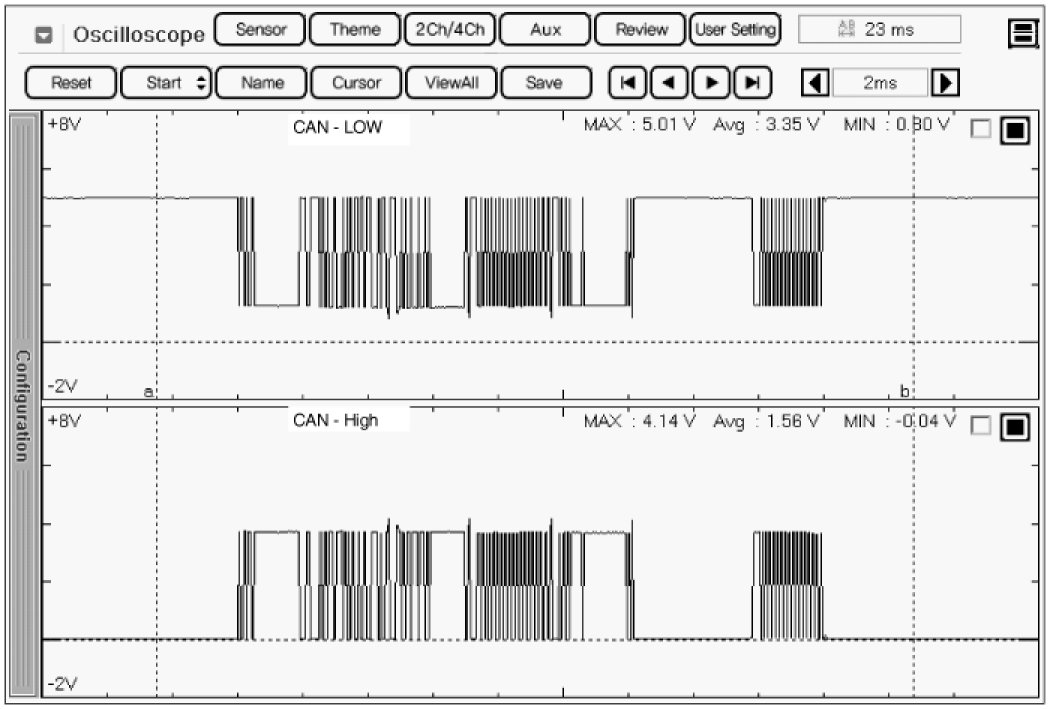

Signal Waveform & Data
