General Information

Instrument Panel Module
B1602 CAN Error - General Information

Component Location





General Description

This is DTC which is related with communication error between PDM and other units.
** Body CAN communication Control Units : IPM(Intelligent integrated Platform Module), CLU(Cluster), PDM(Power Distribution Module), SMK(Smart Key), RPAS(Rear Parking Assist System).
* CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.






DTC Description

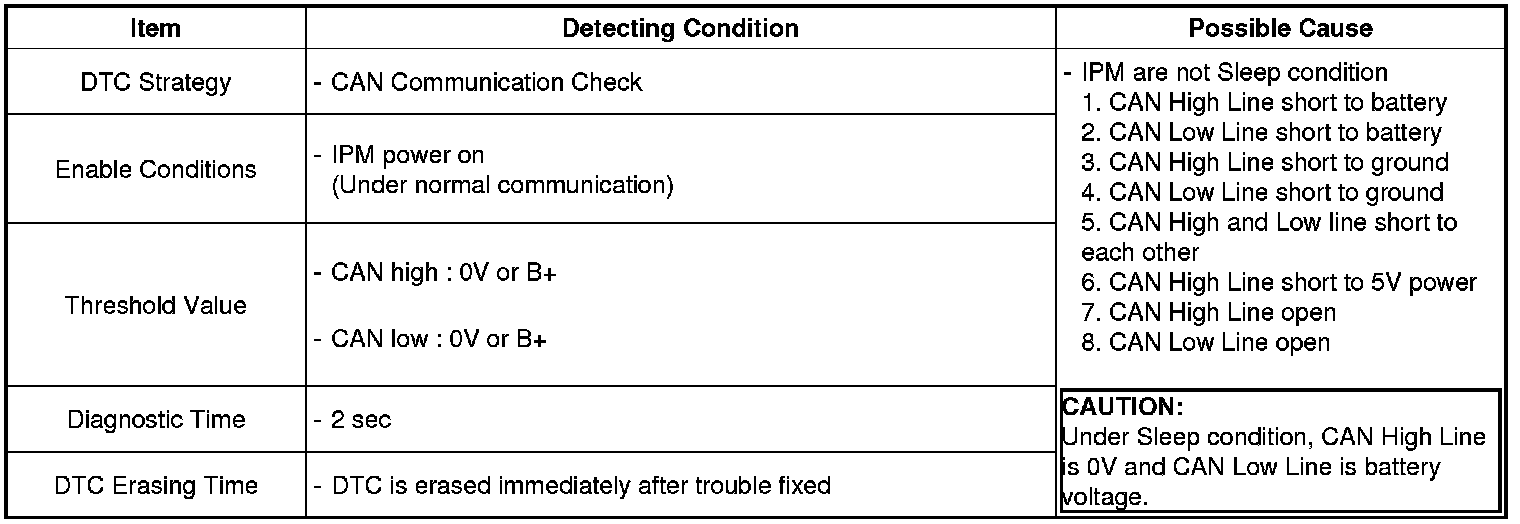

DTC Detecting Condition






Diagnostic Circuit Diagram










Signal Waveform & Data








Fig 1) CAN Low/High Signal Waveform
Fig 2) CAN BUS VOLTAGE LEVEL (LOW SPEED CAN)
