General Information

Airbag(Event #1)
B1512 Buckle Switch Driver short or short to Ground - General Information

Component Location





General Description

Seat-belt Buckle Switch(SBBS) is located in driver and passenger side seat.
SRSCM checks if seatbelt is buckled by signal of SBBS.
SRSCM controls air bag module and BPT differently in accordance with vehicle speed at the moment of collision and signal from SBBS.

NOTE:
If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.

DTC Description

The SRSCM sets DTC B1512 if there is a short or short to ground in DSBBS harness.

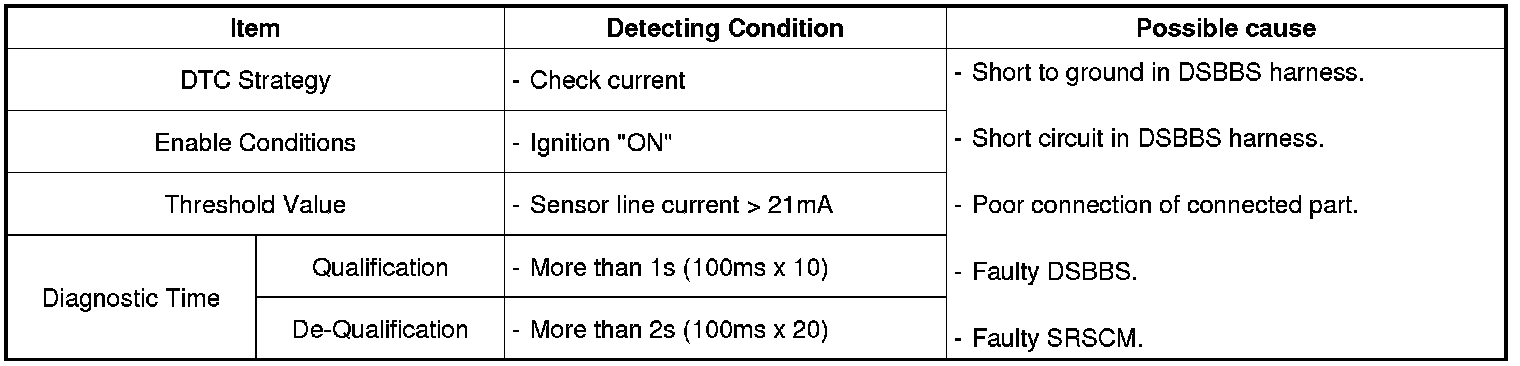

DTC Detecting Condition

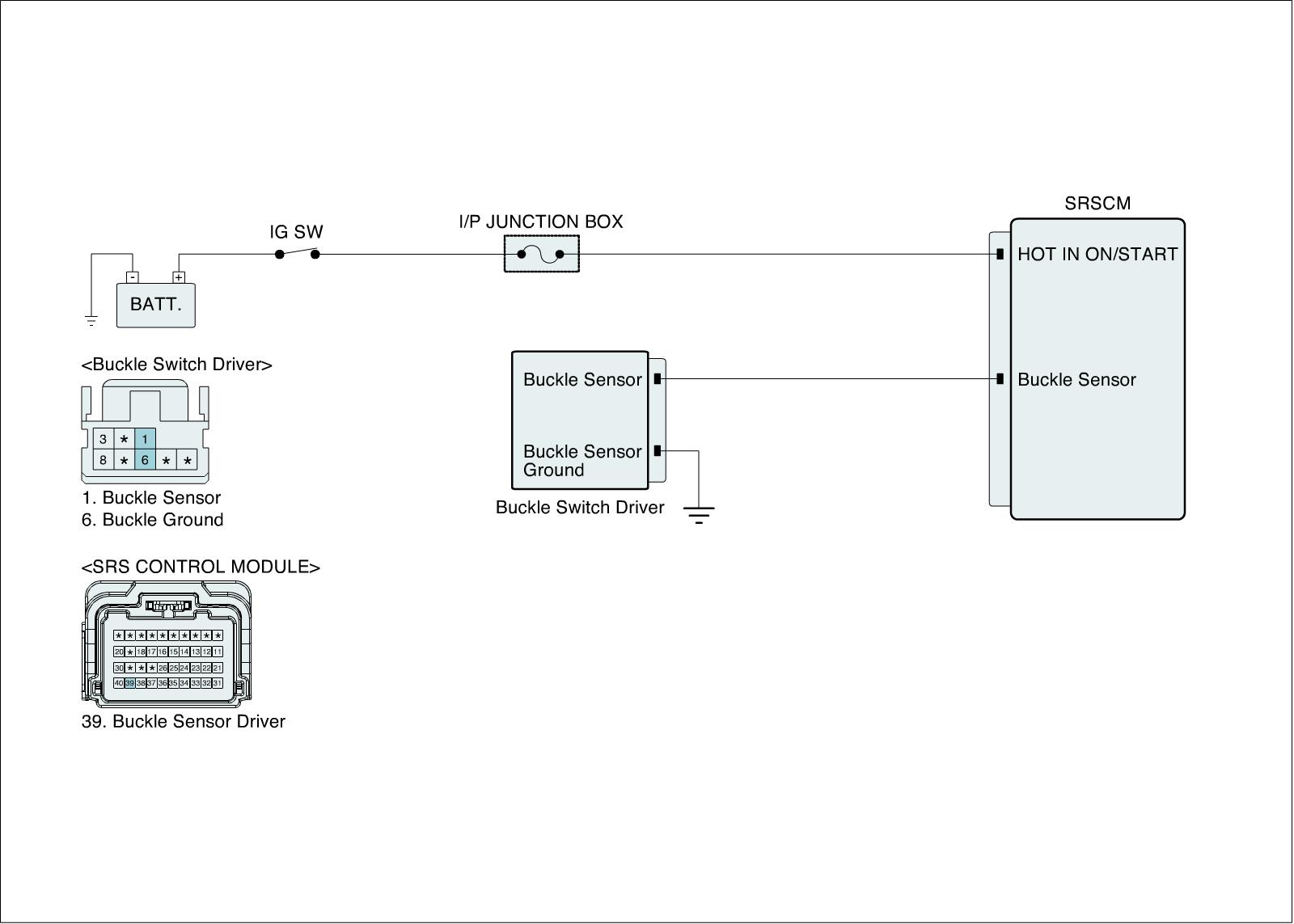

Diagnostic Circuit Diagram
