General Information

Airbag(Event #1)
B1413 SIS(Side Impact Sensor)Rear-Passenger Communication error - General Information

Component Location





DTC Description

The SRSCM sets DTC B1413 if there is any error in communication between RPSIS and SRSCM.

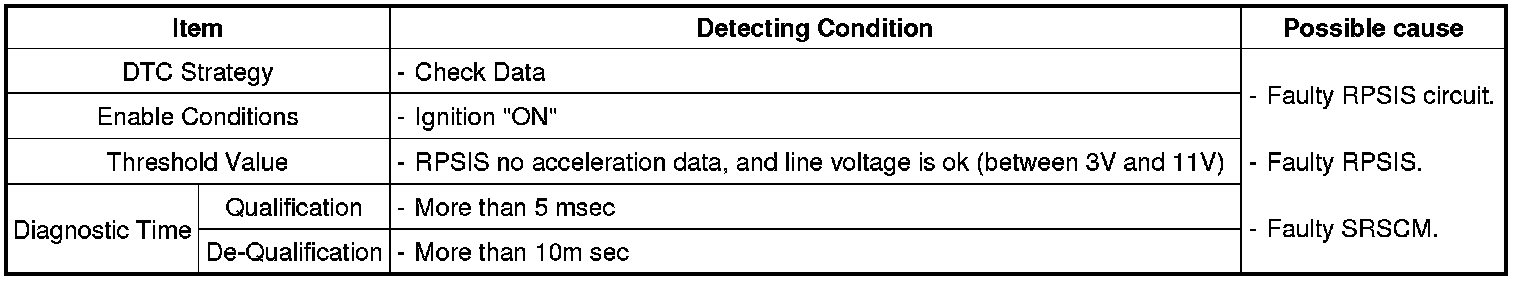

DTC Detecting Condition





Diagnostic Circuit Diagram
