General Information

Airbag(Event #1)
B1395 Firing Loops Interconnection Fault - General Information

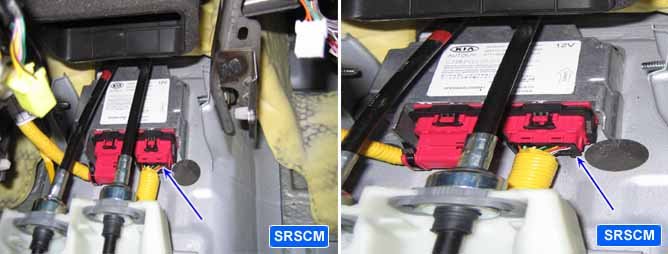

Component Location





General Description

Every air bag module has its firing circuit that ignites powder to deploy air bag according to signal of SRSCM.
SRSCM checks every air bag module when ignition "ON". Once any fault is detected, it is erased only by scantool.

NOTE:
If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.

DTC Description

The SRSCM sets DTC B1395 if there's any short circuit in harness of every firing circuit to one another.

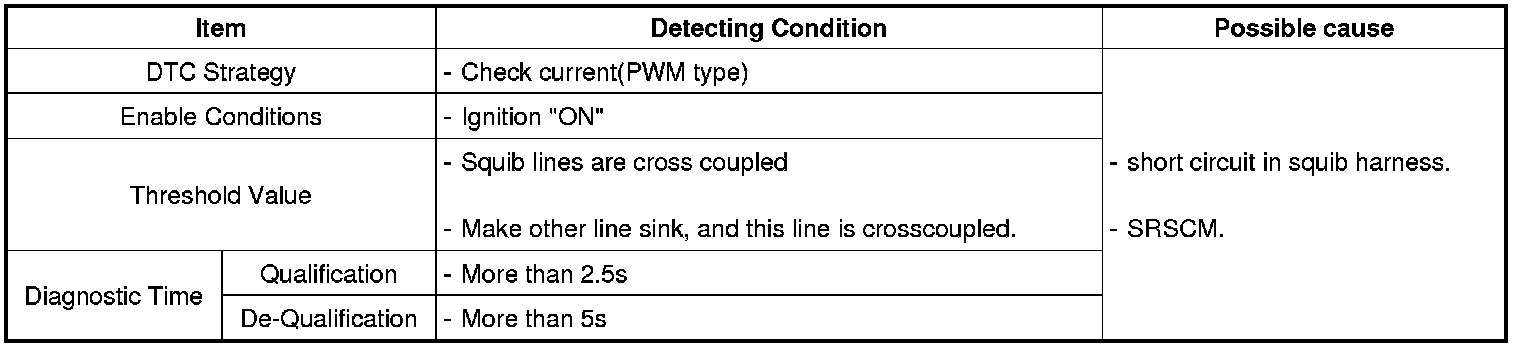

DTC Detecting Condition

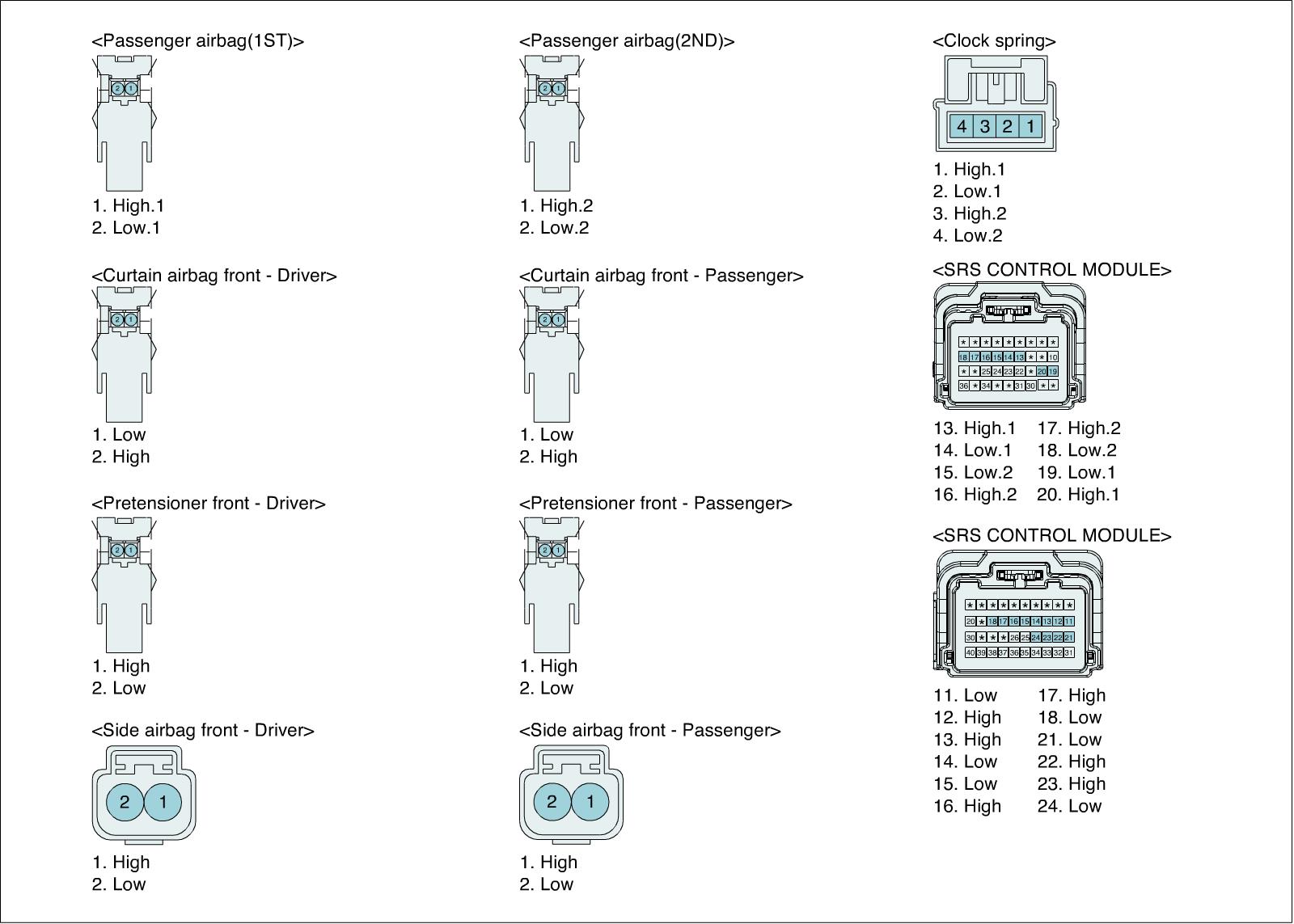

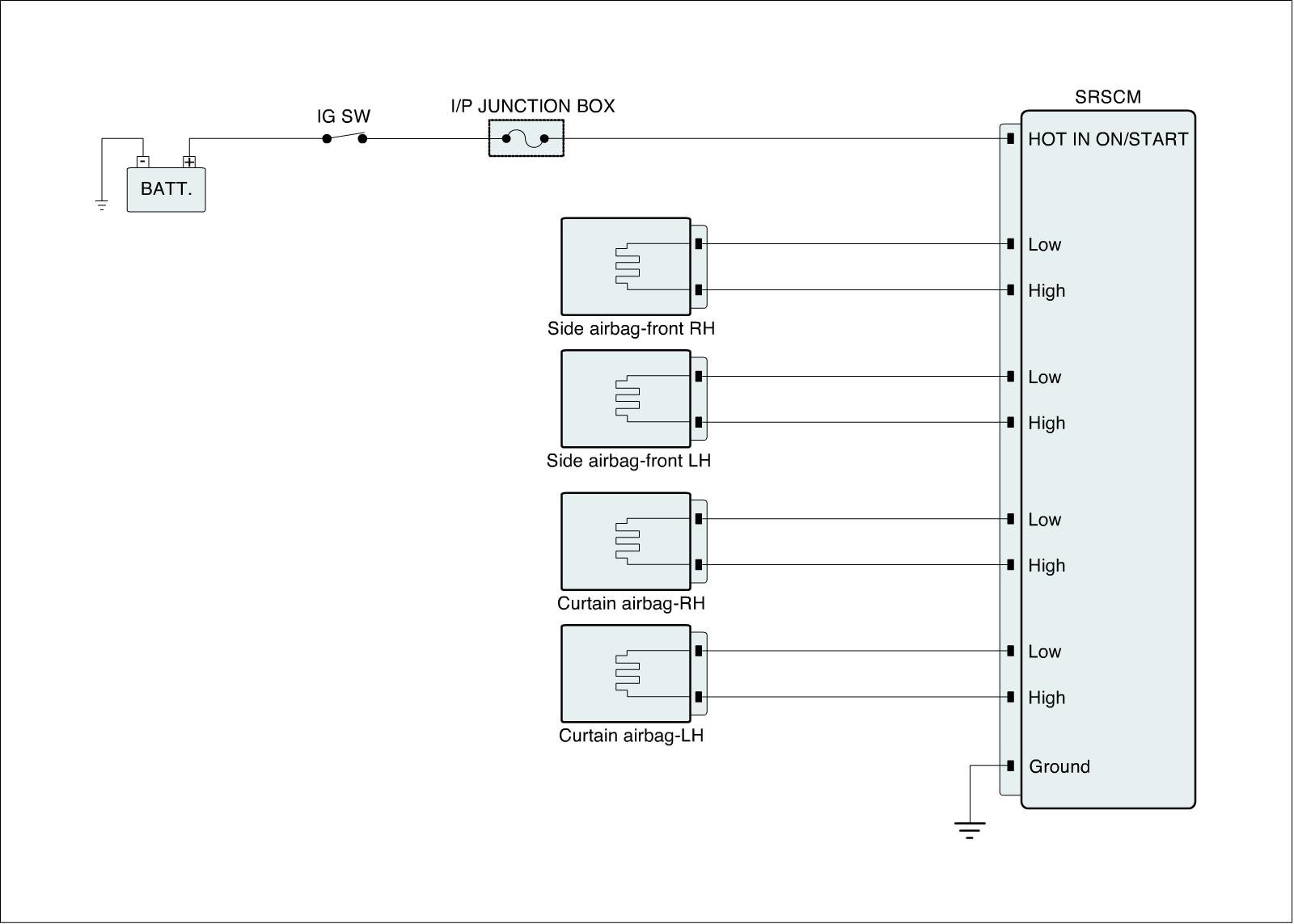

Diagnostic Circuit Diagram
