General Information

Airbag(Event #1)
B1334 FIS(Front Impact Sensor)-Passenger Communication error - General Information

Component Location





General Description

Front Impact Sensor(FIS)located at both sides of the front of engine room detects head-on collision.
When FIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion.
and if both FIS and safing sensor detects collision simultaneously, SRSCM operates front air bag.

NOTE:
If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.

DTC Description

The SRSCM sets DTC B1334 if there is any error in communication between PFIS and SRSCM

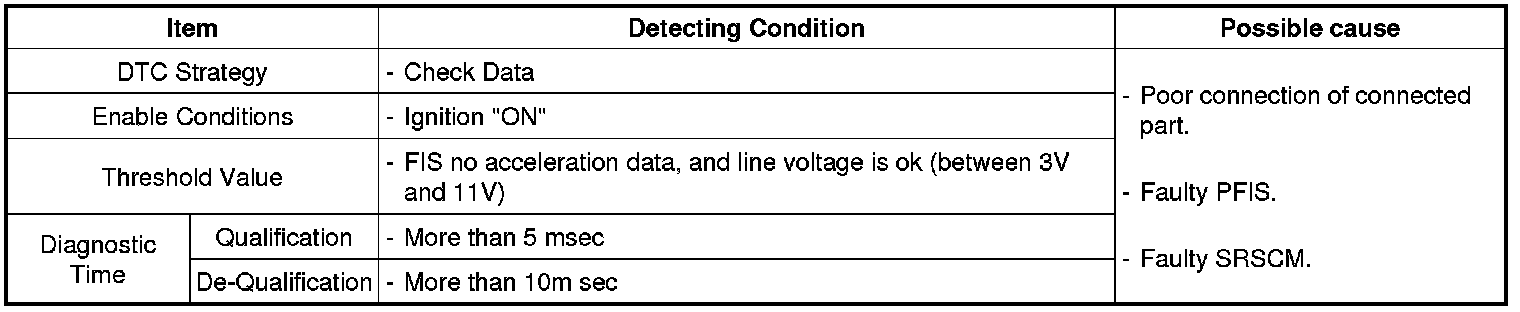

DTC Detecting Condition





Diagnostic Circuit Diagram
