Scantool Diagnostics

Air Conditioner
B1202 Heater Water Temperature Sensor Open(High) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal engine temperature afte engine starts.
3. Select and monitor "Water temperature sensor" parameter.

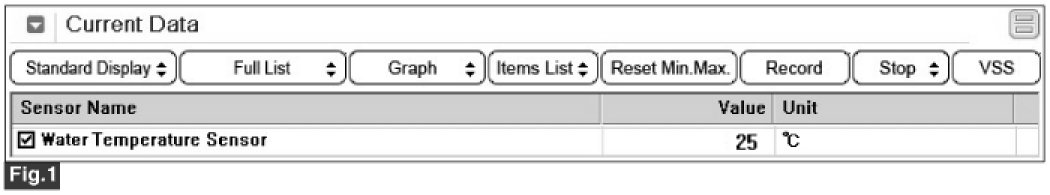

Fig.1) Parameter of "WATER TEMP.SENSOR" will be fixed at 85°C(185°F), if there is any fault in INCAR SENSOR.

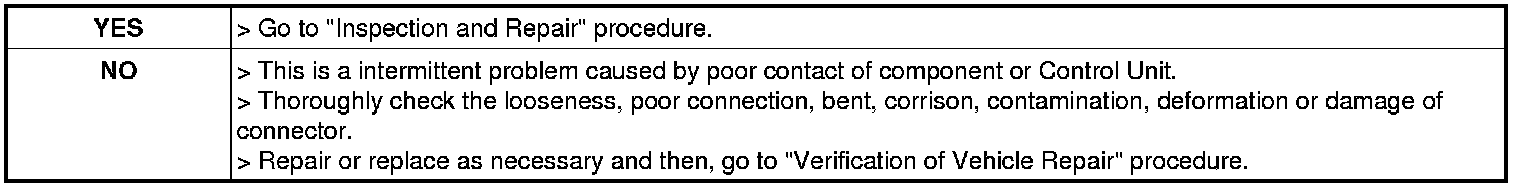

4. Is the Water temperature sensor normal ?
