General Information

Weight Classification
B1112 Ignition Voltage Low - General Information

Component Location





General Description

Passenger side BodySense sensor ECU checks input voltage when "IG ON" to make Passenger side BodySense sensor system work properly.
If input voltage is out of normal range, there can be malfunction in system operation. In this case, Check battery and charging system.

DTC Description

The Passenger side BodySense sensor ECU sets DTC B1112 and turns warning light on if voltage below threshold value is detected.

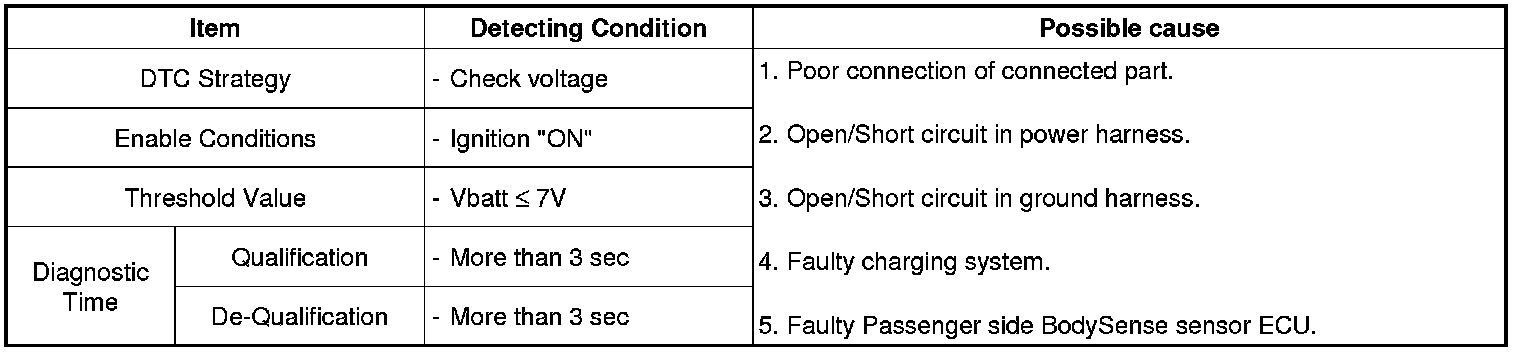

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
