Rear

INSPECTION

1. Remove the connector from the rear wiper motor.




2. Connect battery positive (+) and negative (-) cables to terminals 1 and 2 respectively.
3. Check that the motor operates normally. Replace the motor if it operates abnormally.

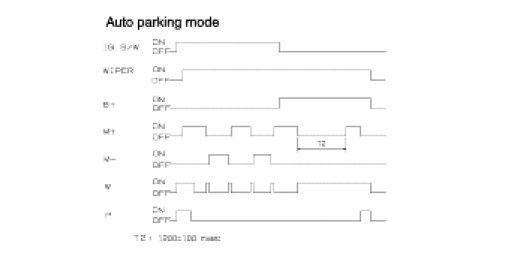

4. Check that the rear wiper operates according to the following time chart.

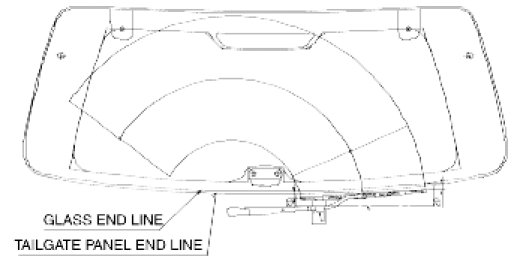

5. After replacing all the removed components, install the rear wiper arm to the specified stop position.

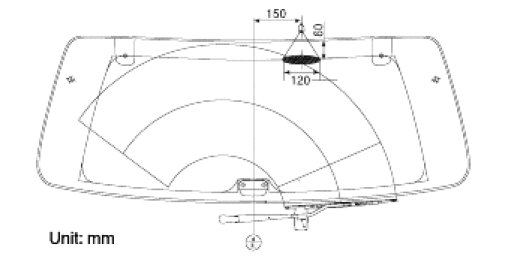

6. Set the washer nozzle on the specified spray position.
