Front Wiper Motor

REMOVAL

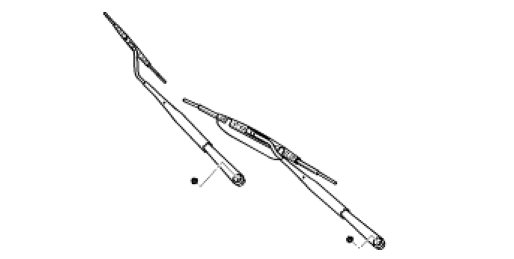

1. Remove the windshield wiper arm and blade after removing the 2 nuts.

NOTE:
Care must be taken not to scratch the engine hood.





Tightening torque :
19-28Nm (190-280kg-cm, 14-20.6lb-ft)


2. Remove the weather strip and the cowl top cover then remove the 5 bolts holding the linkage.





Tightening torque :
4-6Nm (40-60kg-cm, 2.9-4.4lb-ft)


3. Disconnect the windshield wiper motor connector and remove the windshield wiper motor and the linkage.

INSTALLATION

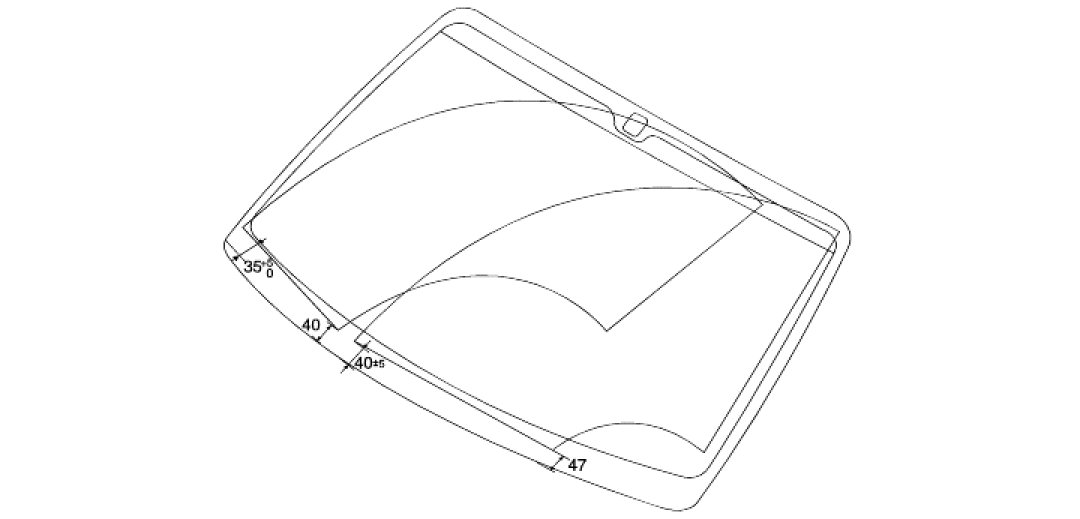

1. Install the wiper arm to the specified position.

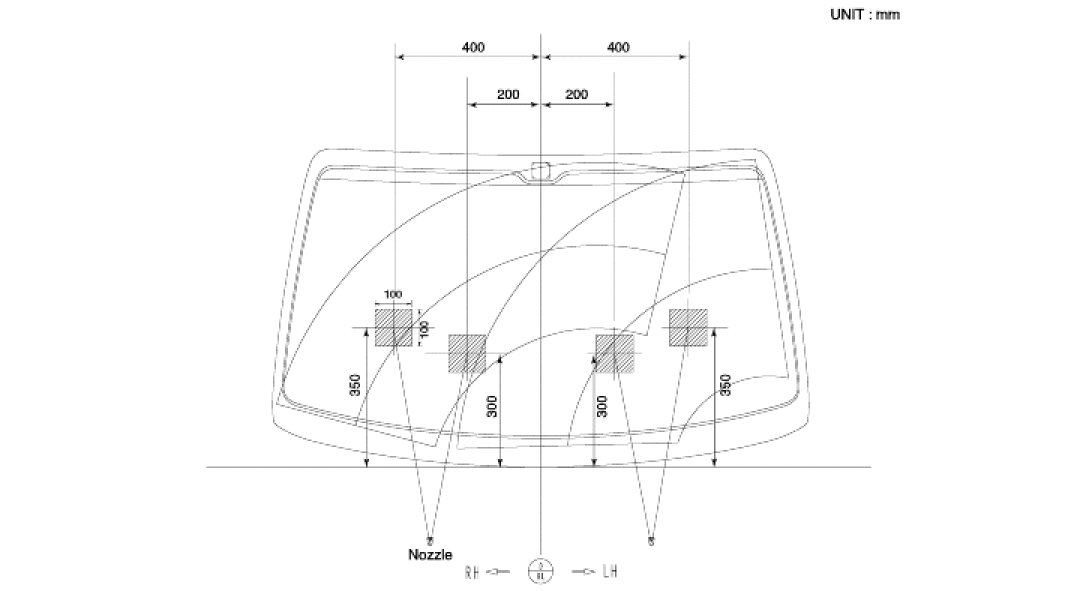

2. Set the washer nozzle on the specified spray position.
