Inspection

INSPECTION/REBUILD

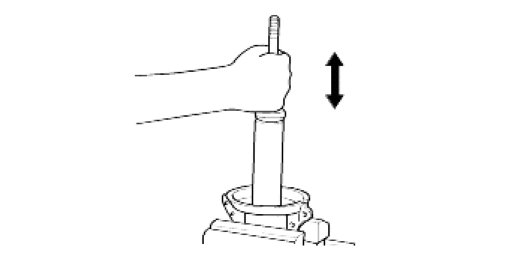

1. Secure a handle to the shock absorber piston rod and compress and lift the rod three times with a constant speed. Inspect for uniform working force and abnormal noise.




2. Inspect the entire shock absorber for signs of oil leakage; replace if required.
3. Inspect the coil spring for stress cracks and/or other damage.
4. Inspect for damage or deterioration of the upper and lower bushes.

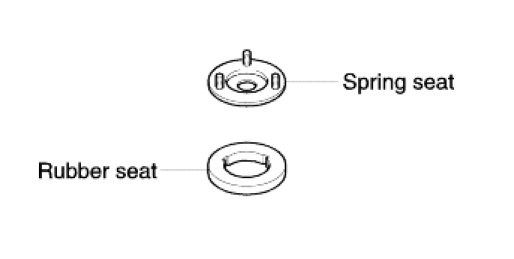

5. Inspect for damage or tearing of the spring seat and rubber seat.
