Disassembly

DISASSEMBLY

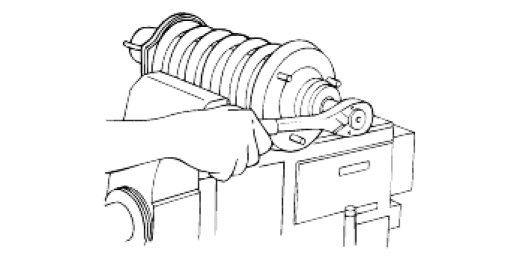

1. Secure the shock absorber in a suitable vise.
2. Loosen the piston rod nut several turns.

NOTE:
- Use copperplate in the jaws of the vise to protect the shock absorber bottom bracket.
- Remove the piston rod nut until coil spring is compressed and secured.




3. While still secured in a vise, compress the coil spring with SST.

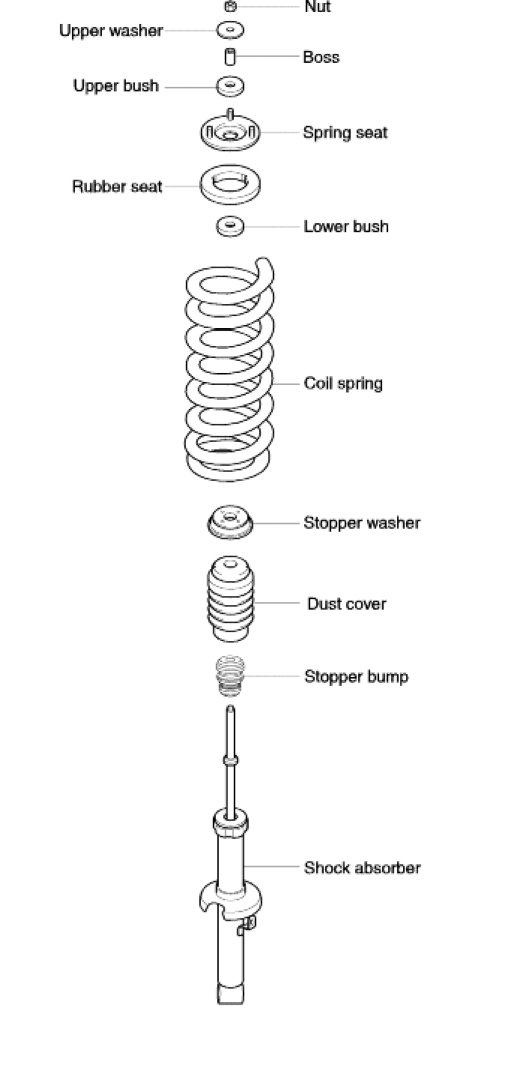

4. Remove the piston rod nut and each part as below.
