Front Stabilizer Bar

REMOVAL

1. Raise up the front of the vehicle and support it with safety stands.
2. Remove the wheels.
3. Remove the undercover.
4. Remove the nuts and oil damper rubbers of control link.

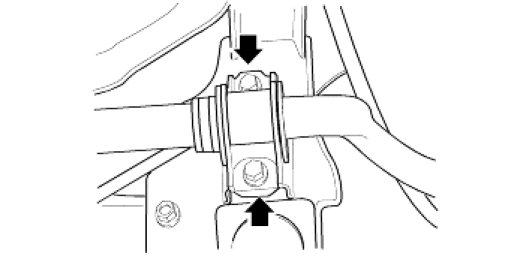

5. Remove the stabilizer bar bushing brackets and then remove the stabilizer bar.

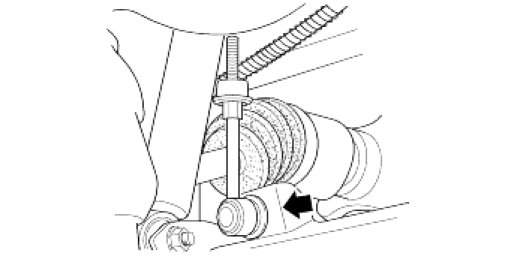

6. Remove the control link from the lower arm.






INSTALLATION

1. Position the control links to the lower arm.
2. Loosely tighten the control link nuts.
3. Install the stabilizer bar on the control link.
4. Align the clamp bushing inside of stabilizer bushing and install bracket.

Tightening torque:
44-55 Nm (4.4-5.5 kg-m, 31-39 lb-ft).





5. Install the oil damper rubber and nut, and then tighten to the specified length.




6. Tighten the lower nut of control link.

Tightening torque:
95-117 Nm (9.5-11.7 kg-m, 68-84 lb-ft).
