Lateral Stabilizer Rod: Service and Repair

LATERAL ROD

Removal
1. Raise the rear of the vehicle and support it with safety stands.
2. Remove the rear wheels.
3. Raise the rear axle housing to facilitate removal of the lateral rod.
4. Remove shock absorber lower bolt.

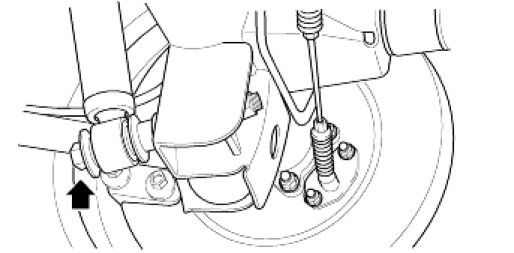

5. Loosen the lateral rod bolts and remove the lateral rod.





Bushing Replacement
1. Press out the bushing using a standard bearing press.
2. Apply lubricant to the bushing and press into place using a standard bearing press.

Installation

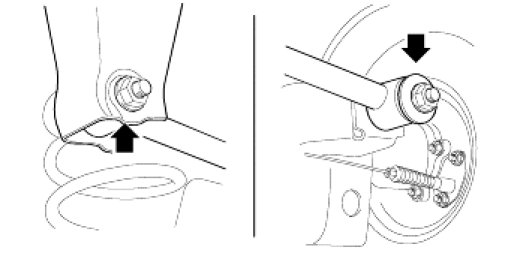

1. Install the lateral rod and the bolts.

Tightening torque:
187-215 Nm (18.7-21.5 kg-m, 135-155 lb-ft).


2. Install shock absorber lower bolt.

Tightening torque:
122-140 Nm (12.2-14.0 kg-m, 88-101 lb-ft).


3. Lower the rear axle housing.
4. Install the wheels and secure with lug nuts.

Tightening torque:
90-120 Nm (9-12 kg-m, 65-86 lb-ft).


5. Remove the safety stands and lower the vehicle.
