Rear Upper Arm, Lower Arm and Assist Link

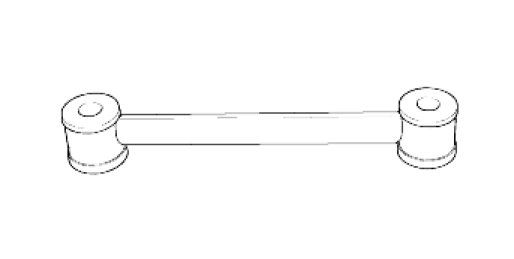

REAR UPPER ARM

Inspection
1. Inspect the upper arm for bends, cracks and/or other damage.
2. Inspect the upper arm bushings for wear and/or deterioration.
3. Replace if damaged, deformed or cracked; replace bushings if worn or deteriorated. Refer to Bushing Replacement in the following procedure.





REAR LOWER ARM

Inspection
1. Inspect the lower arm for bends, cracks and/or other damage.
2. Inspect the lower arm bushings for wear and/or deterioration.
3. Replace if damaged, deformed or cracked; replace bushings if worn or deteriorated. Refer to Bushing Replacement in the following procedure.
