Repair Procedures

REMOVAL

1. Disconnect the pressure hose from the oil pump, disconnect the suction hose from the suction pipe, and drain the oil.




2. Loosen the power steering tension adjusting bolt or flange nut.

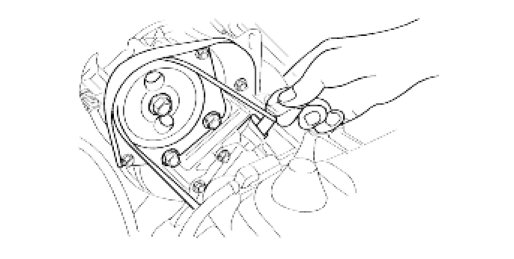

3. Separate the belt from the power steering oil pump pulley.
4. Loosen the power steering oil pump mounting bolt, and then remove the power steering oil pump assembly.




5. Remove the power steering oil pump mounting bracket.

INSTALLATION

1. After installing the oil pump to the oil pump bracket.

Tightening torque:
18 - 23 Nm (1.8 - 2.3 kg-m, 13 - 16 lb-ft)





2. Install the belt and tighten the bolt adjusting tension to the specified torque.




3. Install the suction hose.

CAUTION:
Install the pressure hose to the oil pump.

4. Install the pressure hose to the oil pump.

NOTE:
Install the pressure hose being careful so that it does not twist and come in contact with other components.




5. Add power steering fluid (PSF-III).
6. Air bleed the system.
7. Check the oil pump pressure.
