Kia Truck
>>
2009
>>
Sorento 2WD V6-3.3L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier
SPECIFICATIONS
INSTRUMENTS AND WARNING SYSTEM
SERVICE SPECIFICATIONS

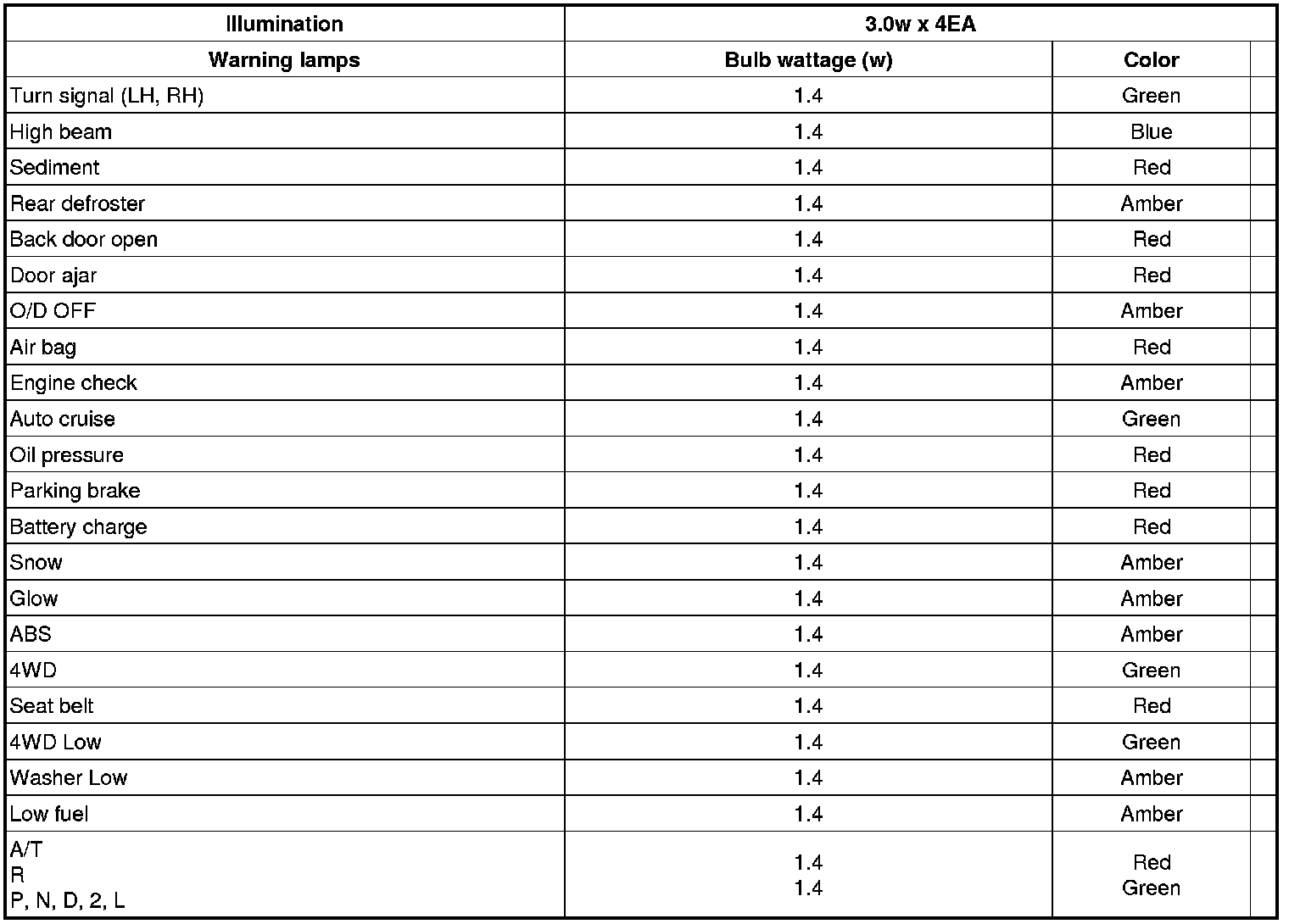

INDICATORS AND GAUGES
