Repair Procedures

REMOVAL AND INSTALLATION

1. Remove seat belt lower anchor bolt.

Tightening torque :
40-55 Nm (4.0-5.5 kg-m, 29-40 lb-ft)





2. Remove rear side trim.
(1) Remove rear door scuff trim.




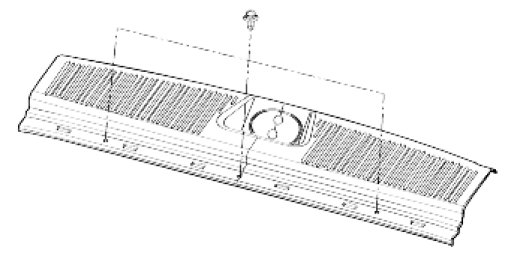

(2) Remove rear transverse trim.




(3) Remove hanger net.
(4) Remove rear side trim screws (5).




3. Remove C pillar trim.




4. Remove seat belt upper anchor bolt.

Tightening torque :
40-55 Nm (4.0-5.5 kg-m, 29-40 lb-ft)


5. Remove retractor.
(1) Remove retractor anchor bolt.

Tightening torque :
40-55 Nm (4.0-5.5 kg-m, 29-40 lb-ft)





(2) Remove retractor screw.

Tightening torque :
18-27 Nm (1.8-2.7 kg-m, 13-20 lb-ft)


6. Install in reverse order of removal.
