Repair Procedures

REMOVAL

1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2. Remove the following parts.
A. Side trim, Roof trim

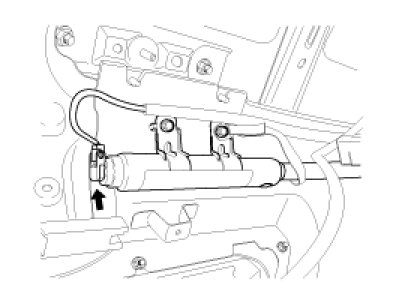

3. Disconnect the Curtain Airbag harness connector.




4. After loosening the mounting bolts(6EA) and nut (1EA) remove the curtain airbag.






INSTALLATION

1. Remove the ignition key from the vehicle.
2. Disconnect the battery negative cable and wait for at least three minutes.
3. Tighten the CAB mounting bolts (6EA) and nut (1EA).

Tightening torque
: 0.8 - 1.2 kgf.m(7.8 - 11.8 Nm, 5.8 - 8.7 lb.ft)


CAUTION:
- Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.

4. Connect the CAB connector.
5. Install the following parts.
A. Side trim, Roof trim
6. Reconnect the battery negative cable.
7. After installing the Curtain Airbag (CAB), confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
