Fuel Filler Neck: Service and Repair

REMOVAL

1. Remove the RH-rear inner wheel hose.
2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).

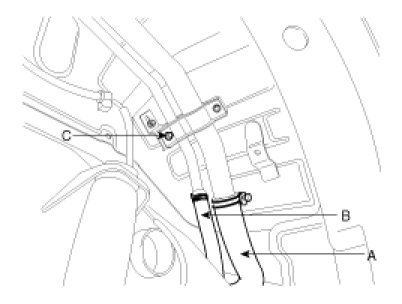

3. Disconnect the fuel filler hose (A) the vacuum hose (B) connected with the canister air filter.




4. Remove the fuel filler neck assembly mounting bolt (C) and remove the fuel filler neck assembly.

INSTALLATION

1. Install the filler-neck assembly in according to the reverse order of "REMOVE" procedure.
