Wheels: Testing and Inspection

WHEEL RUNOUT

1. Jack up the vehicle and support it with jack stands.
2. Measure wheel runout with a dial indicator.
3. Replace the wheel if wheel runout exceeds the limit.

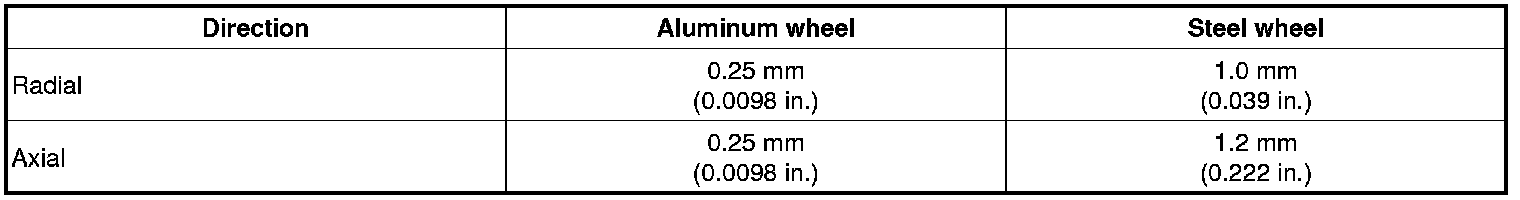

Wheel runout [Limit]
