Turn Signal Lamp: Service and Repair

REMOVAL

TURN SIGNAL LAMP(DOOR MIRROR)
1. Disconnect the negative (-) battery terminal.

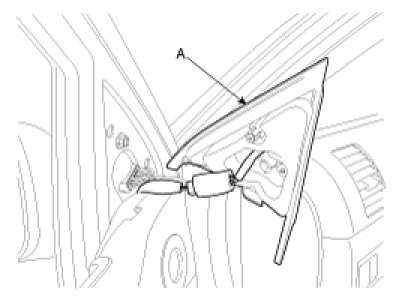

2. Remove the tweeter speaker cover (A).




3. Disconnect the door mirror connector (A).




4. Loosen the 3 bolts then remove the door mirror.

CAUTION:
Turn signal lamp of door mirror uses LED (Light-emitting Diode).

INSTALLATION

TURN SIGNAL LAMP(DOOR MIRROR)
1. Reassemble the door mirror to the door.
2. Connect the door mirror connector.
3. Reassemble the tweeter speaker.
