Parking Brake Shoe: Service and Repair

REMOVAL (BRAKE SHOE)
1. Remove rear disk caliper assembly.
2. Before removing the brake disk, chalk both sides of the screw.

NOTE:
Reduce the shoe gap by turning the adjuster with appropriate tool.

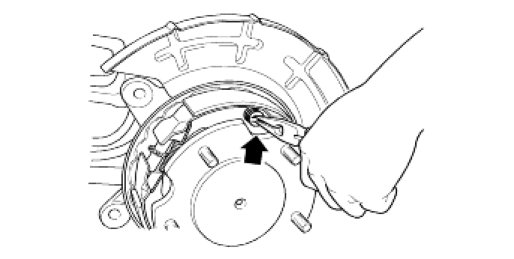

3. After turning the pin to coincide with hole of spring cap, remove the shoe hold spring.

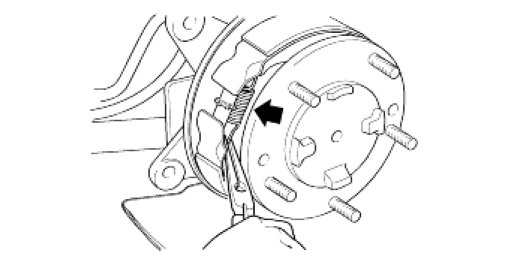

4. Remove the lower return spring.




5. Remove the parking brake cable mounting nuts.




6. Remove the parking brake shoes.
