Parking Brake Shoe: Adjustments

ADJUSTMENT PROCEDURE

ASSEMBLY (BRAKE SHOE)

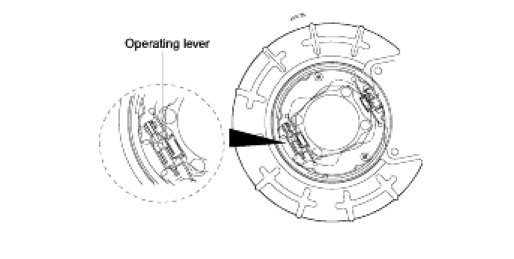

1. Install the parking brake cable to the operating lever and then install the operating lever as shown in the figure.




2. Tighten the parking brake cable mounting nuts.

Tightening torque
47-54 Nm (4.7-5.4 kg-m, 34-39 lb-ft)

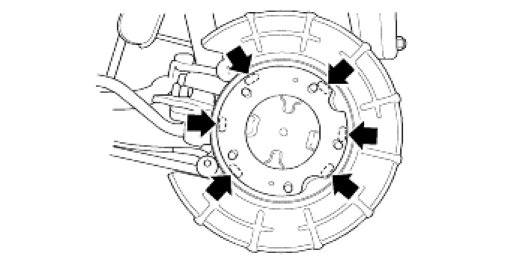

3. Apply the grease to the area in the figure.




4. Install the upper return spring and brake shoes
5. Turn the adjuster in clockwise direction and install.

NOTE:
direction of adjuster turn
Clockwise : narrowing the shoe gap.
Counterclockwise : widen the shoe gap.




6. Install the lower return spring.




7. Install the shoe hold spring with a plier.
8. Install the disk brake and then align the mark while tightening the screw.
