Removal and Replacement

REMOVAL

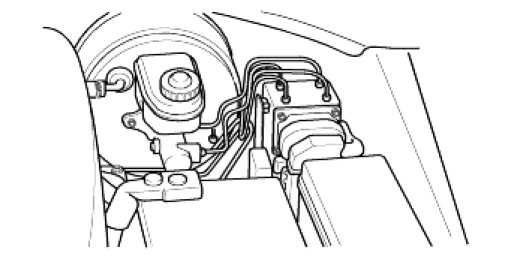

1. Detach the brake tubes from the master cylinder, and then install the plug.

CAUTION:
Do not allow brake fluid to remain on a painted surface. Wash it off immediately.




2. Remove the master cylinder mounting nuts and then remove the master cylinder.

INSTALLATION

1. Install the master cylinder on the brake booster with 2 nuts.

Tightening torque
Master cylinder installation nut :
10-16 Nm (100-160 kg-cm, 7-11 lb-ft)


2. Connect 2 brake tubes and the brake fluid level warning connector.

Tightening torque
Brake tube flare nut :
13-22 (130-220 kg-cm, 9.5-15 in.)
