Reassembly

REASSEMBLY

1. Apply genuine brake fluid to the rubber parts of the cylinder kit and grommets.

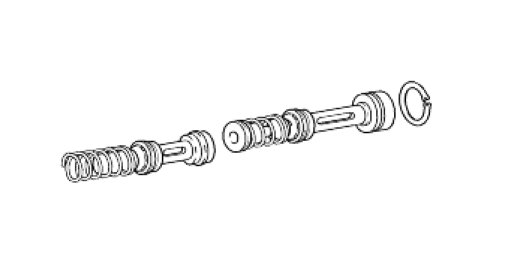

1. Carefully insert the springs and pistons in the proper direction.

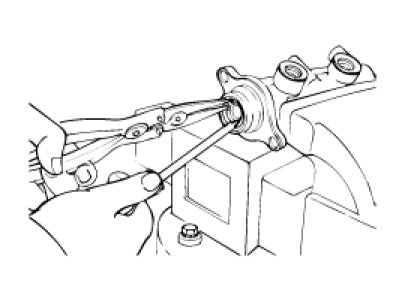

2. Press the piston with a screwdriver and install the retainer ring.




1. With the piston pushed completely by a screwdriver, install the bolt.

Tightening torque :
7-10 Nm (0.7-1.0 kg-m, 5-7 lb-ft)


2. Mount two grommets.

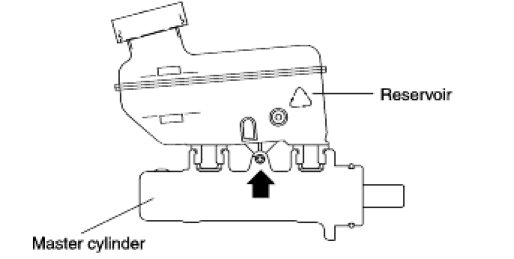

3. Install the reservoir on the cylinder.

Tightening torque :
1-1.5 Nm (0.1-0.15 kg-m, 0.7-1.0 lb-ft)
